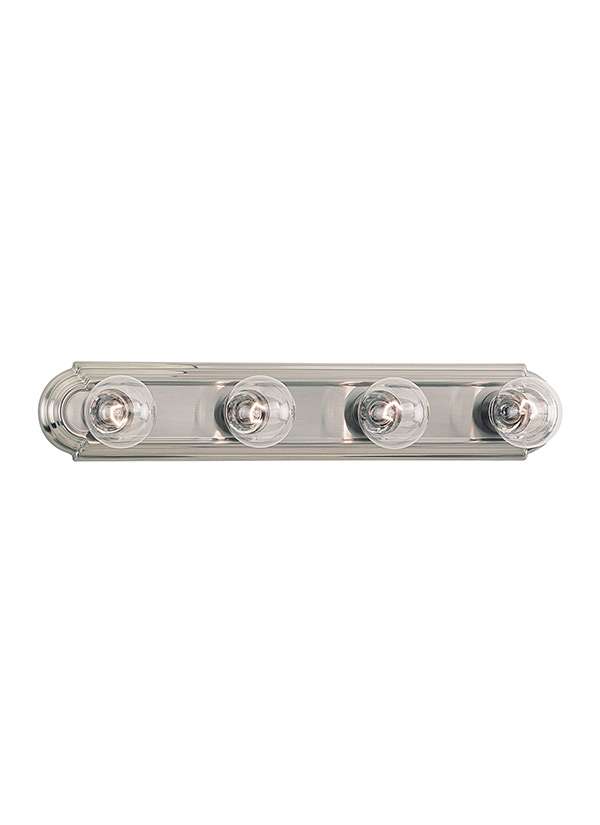

4701-962: Four Light Wall / Bath


Collection:  De-Lovely

Four Light Bath Bracket in Brushed Nickel Finish.

Six- light wall/bath fixture with brushed nickel finish.

Featured in the decorative De-Lovely collection

4 G25 Medium 100 watt light bulbs

Clear bulb(s) recommended for this fixture

Fixture may be mounted horizontal or vertical

Meets Title 24 energy efficiency standards

UPC #:785652047091

Finish:   Brushed Nickel (962)
Dimensions:

Width: 24''
Height: 4 3/4''
Weight: 2.1 lbs.
Extends: 2 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  4 - Medium G25 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Fixture may be mounted horizontal or vertical
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-107)
French (F-006)
Trilingual (English, Spanish, and French) (4702 4701)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 21/32  24 3/32  1 1/32    2 3/8  12
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4701-962 1  785652047091  26.5 4.75 2.75 0.2 2.7 0 Yes
Master Pack 4701-962 6  10785652047098  27.5 11.5 10 1.83 16.5 0 Yes
NJ Pallet   216    48 40 71 78.889 356.4 No
NV Pallet   288    48 40 71 78.889 776 No
