4738-98: Four Light Wall / Bath

	Collection: Center Stage

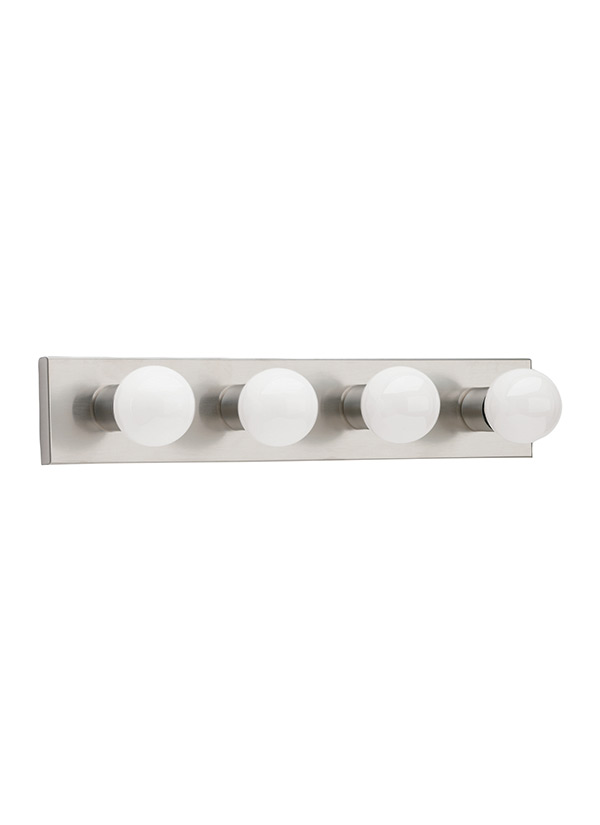

	Four Light Brushed Stainless Bath Bracket that can be Mounted Horizontal or Vertical. The Bulbs are spaced at 6in apart.
	Four-bulb bar light fixture with stainless finish. Sockets spaced on 6" centers.
	Featured in the decorative Center Stage collection
	4 G25 Medium 100 watt light bulbs
	Fixture may be mounted horizontal or vertical
	Meets Title 24 energy efficiency standards
	Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
	UPC #:785652473883
	Finish: Brushed Stainless (98)

Dimensions:


Width:	24''
Height:	4 1/4''

Weight:

2.2 lbs.

Extends:

2 1/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Wall / Bath

Connection:

Mounted To Box

Bulbs:

4 - Medium G25 100w Max. 120v - Not included

Features:

Fixture may be mounted horizontal or vertical
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Brushed Stainless

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (HC-107FB)

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate					2 1/8	12

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4738-98	1	785652473883	25	5	2.5	0.181	2.4	0	Yes
Master Pack	4738-98	6	10785652473880	25	10	7.5	1.085	14.6	0	Yes
NJ Pallet		288		48	40	65	72.222	700.8		No
NV Pallet		294		48	40	65	72.222	716		No
