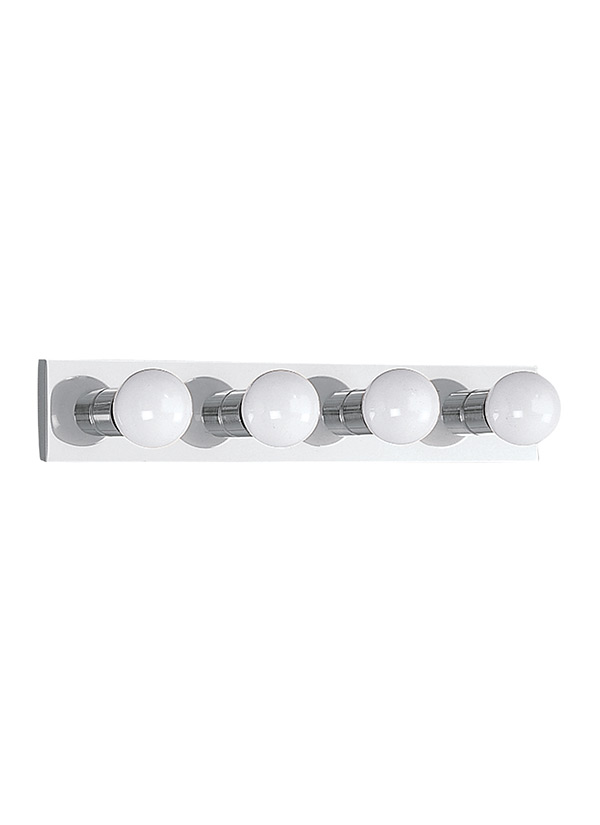

4738-05: Four Light Wall / Bath



Collection:  Center Stage


Four Light Chrome Bath Bracket that can be Mounted Horizontal or Vertical. The Bulbs are spaced at 6in apart.

Four-bulb bar light fixture with chrome finish. Sockets spaced on 6" centers.

Featured in the decorative Center Stage collection

4 G25 Medium 100 watt light bulbs

Fixture may be mounted horizontal or vertical

Meets Title 24 energy efficiency standards

Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

UPC #:785652473852

Finish:   Chrome (05)

Dimensions:

Width: 24''
Height: 4 1/4''
Weight: 2.2 lbs.
Extends: 2 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  4 - Medium G25 100w Max. 120v - Not included
Features:
  • Fixture may be mounted horizontal or vertical
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-107FB)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate         2 1/8  12
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4738-05 785652473852  26 5 2.8 0.211 2.8 0 Yes
Master Pack 4738-05 10785652473859  27 10 10.5 1.641 17.3 0 Yes
NJ Pallet   252    48 40 75.25 83.611 726 No
NV Pallet   252    48 40 68 75.556 726 No
