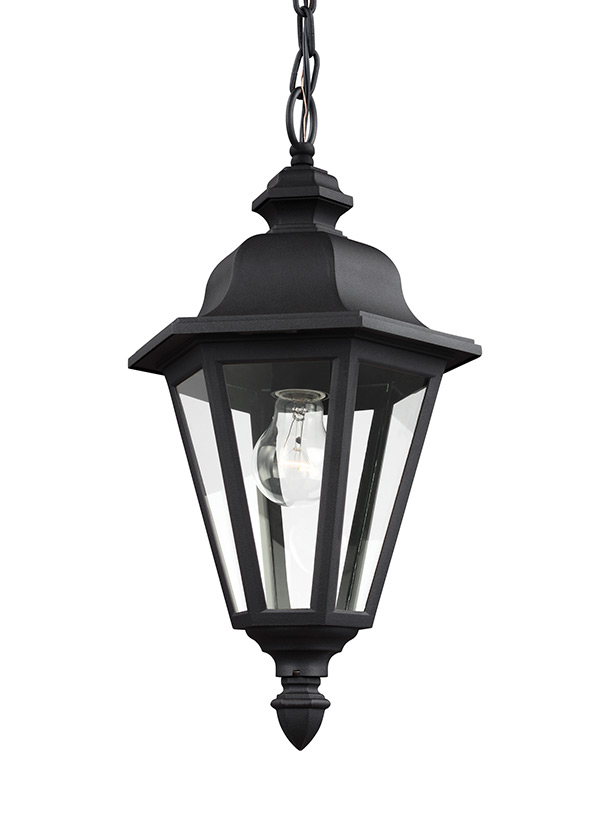

6025-12: One Light Outdoor Pendant


Collection:  Brentwood

Rugged But Decorative Cast Aluminum for Outdoor Decor. Pendant Fixture Made with Durable Black Powdercoat Finish Cast Aluminum and Clear Glass. One Clear Bulb Recommended. U.L. Listed for Damp Location.

Rugged but decorative cast aluminum. Outdoor pendant fixture made with durable black powdercoat finish over cast aluminum and Clear Glass.

Featured in the decorative Brentwood collection

1 A19 Medium 100 watt light bulb

Clear glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652602528

Finish:   Black (12)
Dimensions:

Diameter: 10 1/4''
Height: 18 3/4''
Weight: 5.2 lbs.
Overall Height: 56 1/2''
Wire: 120'' (color/Black)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Cap - Die Cast Aluminum - Black
1 Body - Die Cast Aluminum - Black
1 Chain - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6025-BRE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear 6     3 5/8 7 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 3/16      5 3/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6025-12 1  785652602528  11 10.25 16 1.044 5.55 0 Yes
Master Pack 6025-12 0  10785652602525
NJ Pallet   70    48 40 70 77.778 532 No
NV Pallet   63    48 40 70 77.778 346 No
