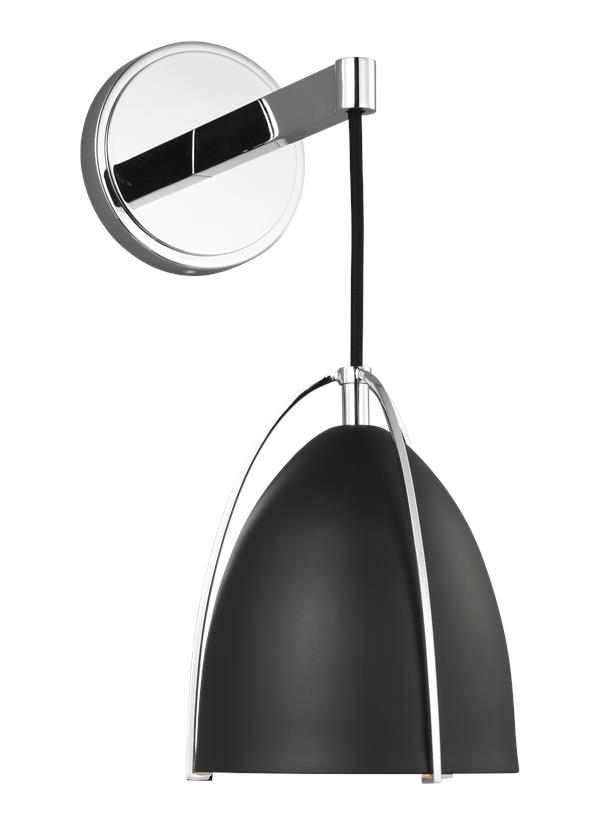

4151701EN3-05: One Light Wall / Bath Sconce


Collection:  Norman

Interior of shade is Matte White

Supplied with 6.5-inches of wire

1 A19 Medium 9 watt LED light bulb

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652092916

Finish:   Chrome (05)
Dimensions:

Width: 6''
Height: 15 3/8''
Weight: 1.8 lbs.
Extends: 11''
Wire: 6 1/2'' (color/Black)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Chrome
1 Shade - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4151701 4151801)
Trilingual (English, Spanish, and French) (4151701 4151801)
Trilingual (English, Spanish, and French) (990W4151_01-NOR)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Midnight Black 1       6 1/2 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     3/4  5  2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4151701EN3-05 1  785652092916  14.1 11.3 9 0.83 3.25 0 Yes
Master Pack 4151701EN3-05 0  10785652092913
NJ Pallet   84    48 40 78 86.667 273 No
