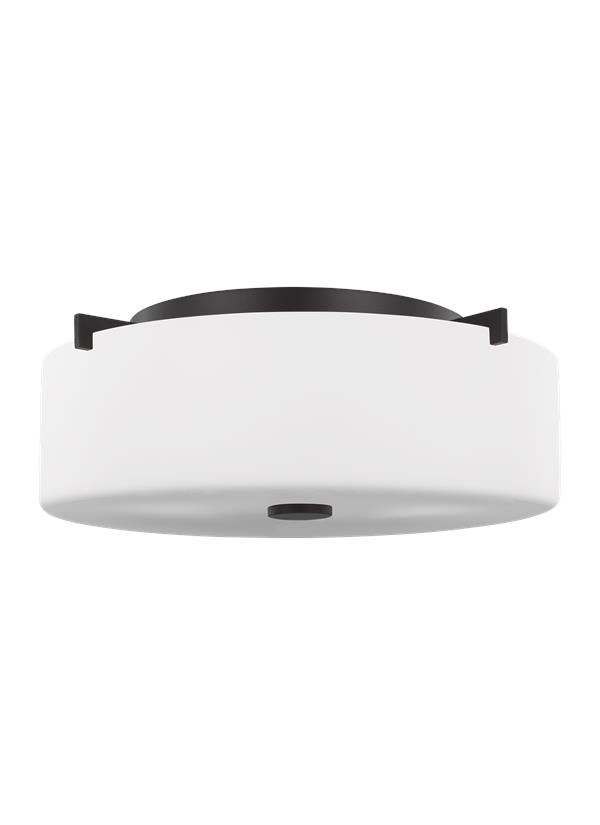

FM313EN3/ORB: Small Two Light Flush Mount

	Collection: Sunset Drive
	Featured in the decorative Sunset Drive collection
	2 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	white opal etched glass shade
	ENERGY STAR® Qualified
	UPC #:785652084799
	Finish: Oil Rubbed Bronze (ORB)

Dimensions:


Diameter:	13 1/2''
Height:	4 3/4''

Weight:

2.97 lbs.

Wire:

8'' (color/Black/White)

Mounting Proc.:

Center Pipe

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Oil Rubbed Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (FM312 FM313)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

White Opal Etched

3 1/2

12 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/8			8 3/8

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	FM313EN3/ORB	1	785652084799	16	16	8	1.185	6.2	0	Yes
Master Pack	FM313EN3/ORB	0	10785652084796
NJ Pallet		60		48	40	69	76.667	372		No
NV Pallet		60		48	40	69	76.667	372		No
