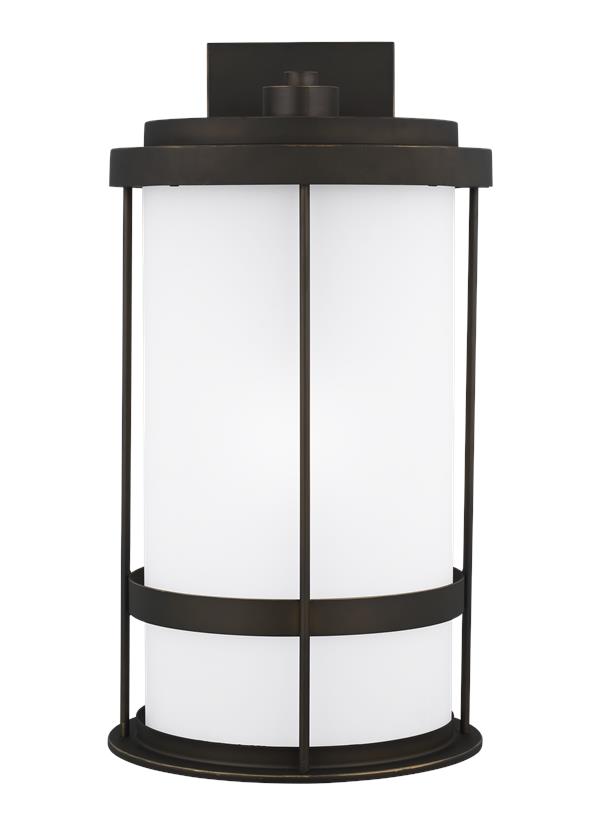

8890901DEN3-71: Extra Large One Light Outdoor Wall Lantern


Collection:  Wilburn

The Wilburn outdoor fixtures are comprised of an oval form factor with grid overlay with an open bottom to cast an even glow.

A distinct industrial inspiration with an external cage detail finished in either Antique Bronze or Black finishes over Etched Seeded glass shades to complete the look.

Two finish options available: Antique Bronze and Black

Assortment includes: small, medium, large and extra large one-light lanterns; two-light flush mount; one-light post lantern and a one-light pendant

Wet Rated and Dark Sky Friendly

UPC #:785652085239

Finish:   Antique Bronze (71)
Dimensions:

Width: 12 5/8''
Height: 24''
Weight: 13.46 lbs.
Extends: 14 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8590901 8690901 8790901 8890901)
Trilingual (English, Spanish, and French) (8590901 8690901 8790901 8890901)
Trilingual (English, Spanish, and French) (990W8_90901D-WIL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       18 3/4 10 3/8
Shade Aluminum White 1       18 3/4 9 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 9  6 3/4  1 1/8    3 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8890901-12 1  785652085239  31.5 17.25 29 9.119 21.2 0 Yes
Master Pack 8890901DEN3-71 0  10785652085236
NJ Pallet   6    48 40 62.5 69.444 127.2 No
NV Pallet   6    48 40 62.5 69.444 127.2 No
