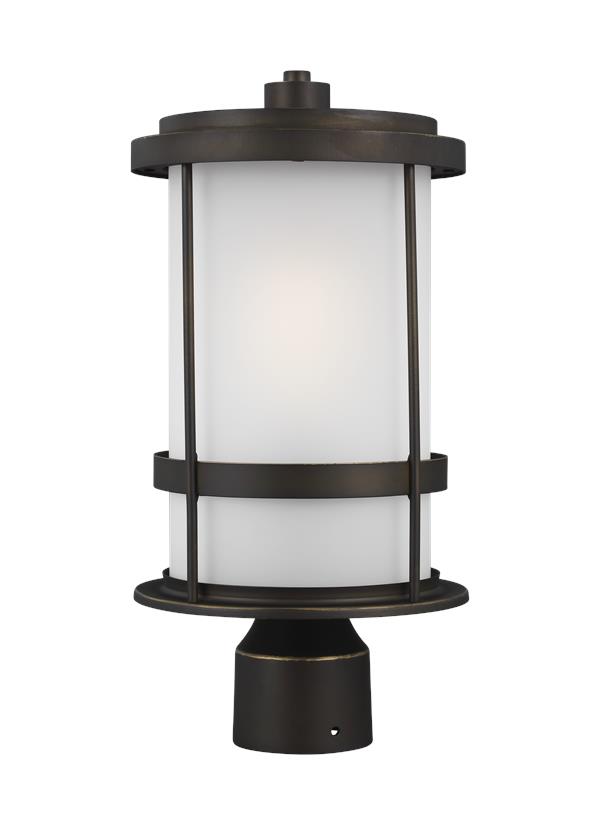

8290901EN3-71: One Light Outdoor Post Lantern



Collection:  Wilburn


The Wilburn outdoor fixtures are comprised of an oval form factor with grid overlay with an open bottom to cast an even glow.

A distinct industrial inspiration with an external cage detail finished in either Antique Bronze or Black finishes over Etched Seeded glass shades to complete the look.

Two finish options available: Antique Bronze and Black

Assortment includes: small, medium, large and extra large one-light lanterns; two-light flush mount; one-light post lantern and a one-light pendant

Wet Rated and Dark Sky Friendly

UPC #:785652080470

Finish:   Antique Bronze (71)

Dimensions:

Diameter: 8''
Height: 16 1/8''
Weight: 4.62 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Post Mount
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (990OP8290901-WIL)
English (8290901)
Trilingual (English, Spanish, and French) (990OP8290901-WIL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 1       10 3/8 6 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Post 3 1/2      3 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8290901-12 785652080470  20.5 12.75 20.25 3.063 7.1 0 Yes
Master Pack 8290901EN3-71 10785652080477
NJ Pallet   21    48 40 67.5 75 149.1 No
NV Pallet   21    48 40 67.5 75 149.1 No
