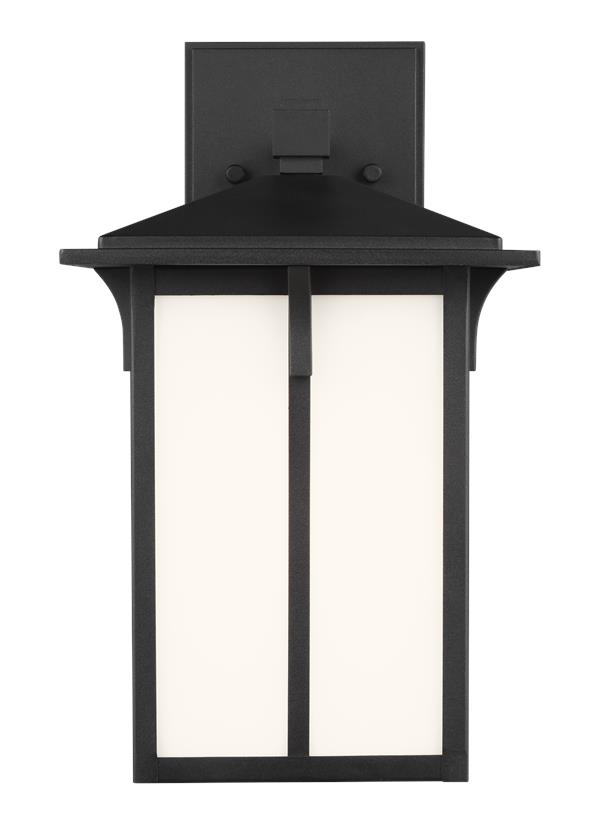

8552701EN3-12: Small One Light Outdoor Wall Lantern

	Collection: Tomek
	Traditional elements are updated with contemporary lines with a sense of Asian-inspired styling.
	Two finish options available: Antique Bronze and Black
	Etched White inside glass panels
	Assortment includes: small, medium, and large one-light lanterns; one-light post lantern; two-light flush mount and one-light pendant.
	Wet Rated
	UPC #:785652080623
	Finish: Black (12)

Dimensions:


Width:	6 3/4''
Height:	10 5/8''

Weight:

3.28 lbs.

Extends:

8 3/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (990W8_52701-TOM)
Trilingual (English, Spanish, and French) (990W8_52701-TOM)
Trilingual (English, Spanish, and French) (8552701 8652701 8752701)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Etched / White Inside

6 7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	6 1/2	5	1		2 1/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8552701-12	1	785652080623	10	9.13	13.38	0.707	3.9	0	Yes
Master Pack	8552701EN3-12	0	10785652080620
NJ Pallet		84		48	40	69.5	77.222	327.6		No
NV Pallet		84		48	40	69.5	77.222	327.6		No
