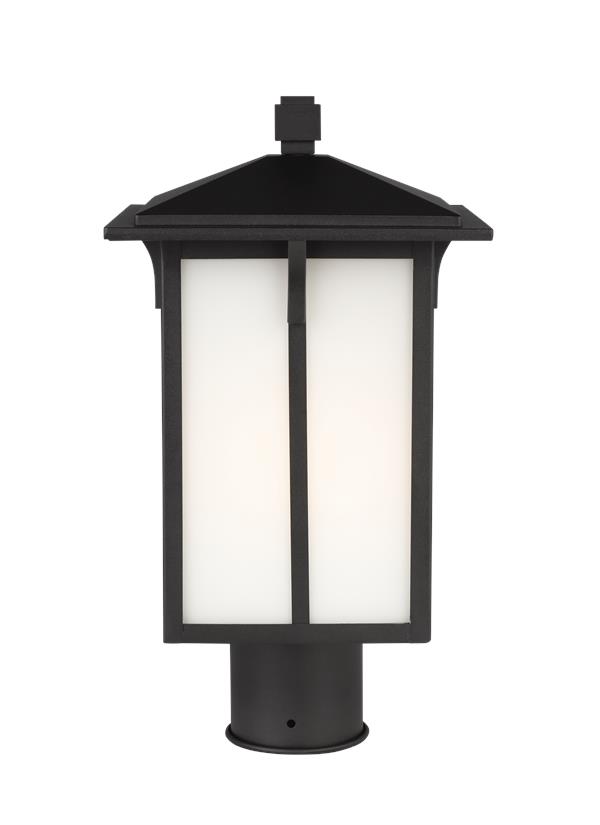

8252701EN3-12: One Light Outdoor Post Lantern


Collection:  Tomek

Traditional elements are updated with contemporary lines with a sense of Asian-inspired styling.

Two finish options available: Antique Bronze and Black

Etched White inside glass panels

Assortment includes: small, medium, and large one-light lanterns; one-light post lantern; two-light flush mount and one-light pendant.

Wet Rated

UPC #:785652080609

Finish:   Black (12)
Dimensions:

Length: 8 3/8"
Width: 8 3/8''
Height: 15 3/8''
Weight: 4.08 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Post Mount
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (990OP8252701-TOM)
English (8252701)
Trilingual (English, Spanish, and French) (8252701)
Trilingual (English, Spanish, and French) (990OP8252701-TOM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched / White Inside 4     5 1/2 9
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Post 3      3 5/32
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8252701-12 1  785652080609  17 10.75 10.75 1.137 5 0 Yes
Master Pack 8252701EN3-12 0  10785652080606
NJ Pallet   54    48 40 70 77.778 270 No
NV Pallet   54    48 40 70 77.778 270 No
