4430802EN-05: Two Light Wall / Bath


Collection:  Syll

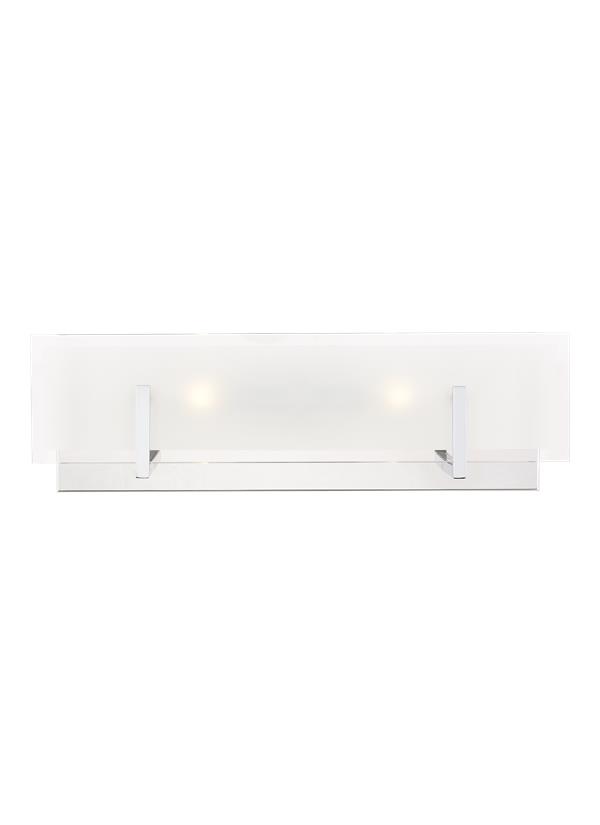

Modern wall fixture with geometric frosted glass shades perfect for the bathroom.

Syll is modern inspired design bath family that brings streamlined, practical elegance to your home. A geometric, rectangular frame and wall plate hold the angled arms with sleek candle cup detailing. Syll offers a stylish Brushed Nickel and Chrome finish frames, with brilliant frosted beveled glass panels in the Syll vanity fixtures. Ideal for luxe or mid-century modern interiors, the visual interest provides a reinvention of the popular glass design.

2 Torpedo Candelabra 3.5 watt light bulbs included

Available in two finishes: Brushed Nickel and Chrome

Assortment includes: one-,two-, three- and four-light vanity fixtures.

Damp Rated

UPC #:785652081101

Finish:   Chrome (05)
Dimensions:

Width: 18''
Height: 5 1/2''
Weight: 3.3 lbs.
Extends: 3 7/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  2 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4130801 4430802 4430804 4430806)
Trilingual (English, Spanish, and French) (4130801 4430802 4430804 4430806)
Trilingual (English, Spanish, and French) (990W4_3080_-SYL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Highlighted Satin Etched 1 G560375-675   18 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  17  3/4    3 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4430802-05 1  785652081101  21 7.25 7 0.617 4.4 0 Yes
Master Pack 4430802EN-05 0  10785652081108
NJ Pallet   120    48 40 76.5 85 528 No
NV Pallet   120    48 40 76.5 85 528 No
