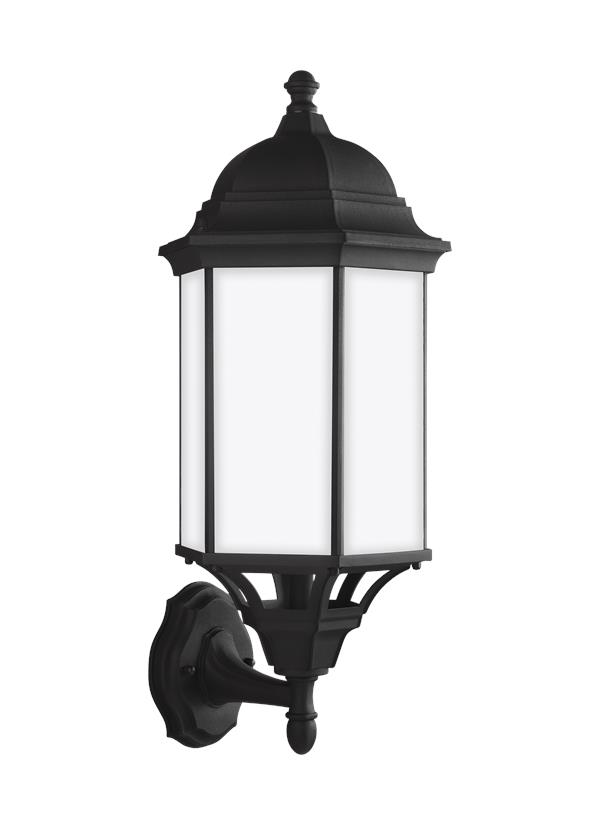

8638751EN3-12: Large One Light Uplight Outdoor Wall Lantern


Collection:  Sevier

Featured in the decorative Sevier collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

satin etched glass panels

ENERGY STAR® Qualified

UPC #:785652056291

Finish:   Black (12)
Dimensions:

Width: 9 3/8''
Height: 21 3/4''
Weight: 4.4 lbs.
Extends: 8 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W86387_1-SEV)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Satin Etched 6     3 1/4 8 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 3/8  4 1/2  7/8    18 3/4  3
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8638751EN3-12 1  785652056291  20 11.5 11.75 1.564 5.7 0 Yes
Master Pack 8638751EN3-12 0  10785652056298
NJ Pallet   48    48 40 73 81.111 273.6 No
NV Pallet   48    48 40 73 81.111 273.6 No
