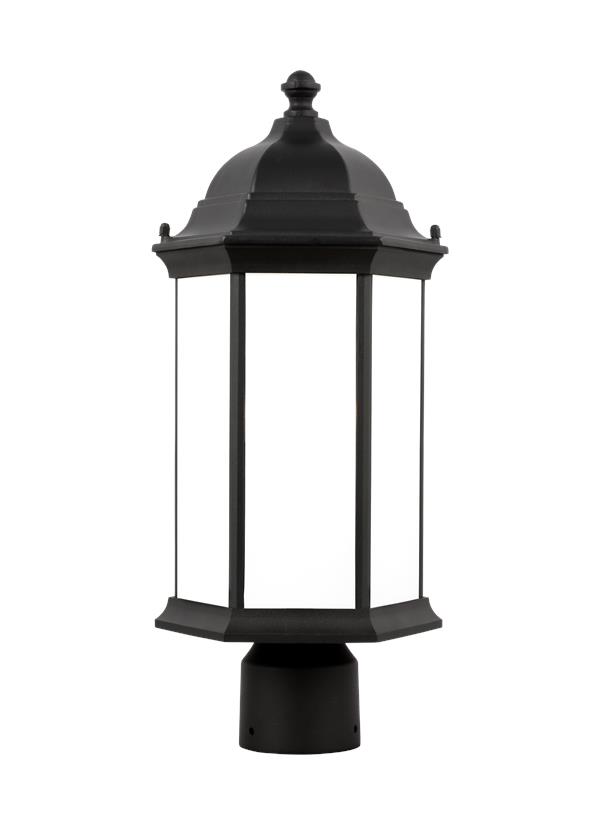

8238651EN3-12: Medium One Light Outdoor Post Lantern

	Collection: Sevier
	Featured in the decorative Sevier collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	satin etched glass panels
	ENERGY STAR® Qualified
	UPC #:785652082887
	Finish: Black (12)

Dimensions:


Diameter:	8 1/8''
Height:	17 3/4''

Weight:

3.16 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Post Mount

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Die Cast Aluminum - Black

1 Post Cup - Die Cast Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (8238601 8238651 8238701 8238751)
Trilingual (English, Spanish, and French) (990OP8238701-SEV)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Satin Etched

3 1/8

7 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Post	3 1/2			3 3/8

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8238601-12	1	785652082887	17.9	10.9	11.6	1.31	4.2	0	Yes
Master Pack	8238651EN3-12	0	10785652082884
