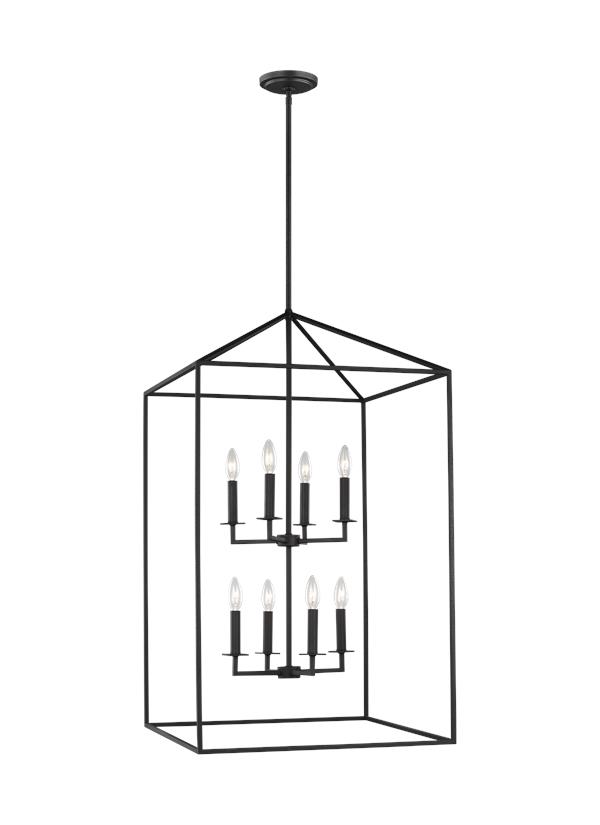

5315008EN-839: Extra Large Eight Light Hall / Foyer


Collection:  Perryton

Traditional iron forms and casual styling available in four finishes

8 Torpedo Candelabra 3.5 watt light bulbs included

Perfect statement piece over a kitchen counter or dining table.

Includes two sets of candle covers in Blacksmith and Chrome finishes.

ENERGY STAR® Qualified

UPC #:785652082665

Finish:   Blacksmith (839)
Dimensions:

Length: 22"
Width: 22''
Height: 38''
Weight: 14.1 lbs.
Overall Height: 82 1/2''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Lumens: 350
Bulbs:
  8 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Blacksmith
1 6" Stem - Steel - Blacksmith
3 12" Stem - Steel - Blacksmith
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (990P5315008-PER)
Trilingual (English, Spanish, and French) (5115004 5115008 5215004 5315008)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5315008-839 1  785652082665  41.5 25 25 15.01 20.5 300 Yes
NJ Pallet   4    48 40 54.5 60.556 82 No
NV Pallet   4    48 40 54.5 60.556 82 No
