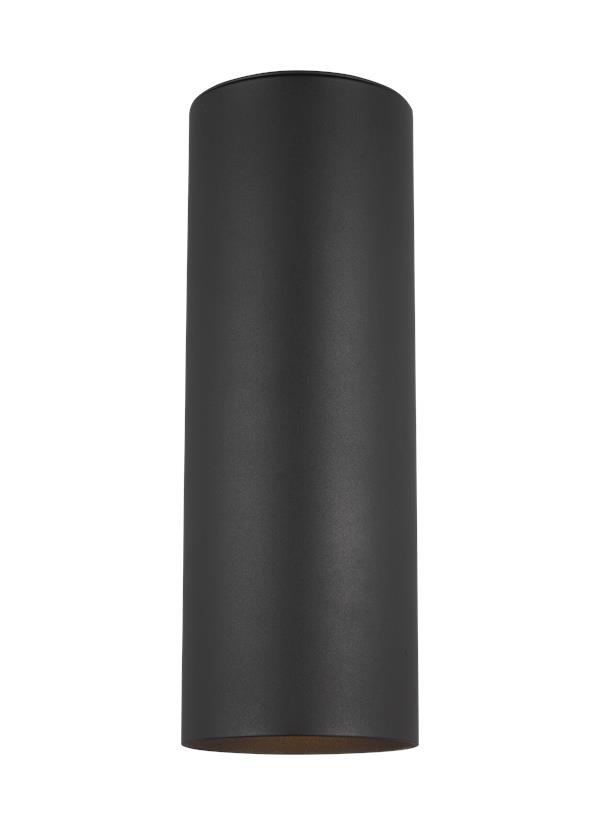

8313802EN3-12: Small Two Light Outdoor Wall Lantern

	Collection: Outdoor Cylinders
	Featured in the decorative Outdoor Cylinders collection
	2 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	tempered glass
	Up and down light
	UPC #:785652083051
	Finish: Black (12)

Dimensions:


Width:	5 1/8''
Height:	14 1/4''

Weight:

2.7 lbs.

Extends:

7 7/8''

Wire:

6'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Powder coat added to the finish to protect against aging.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990W8313_0_-BUL)
Trilingual (English, Spanish, and French) (8313802 8313902)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Tempered Glass

1/8

4 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	4 1/2	4 1/2	2 7/8		7 1/8	7 1/8

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8313802EN3-12	1	785652083051	16.25	6.25	9	0.529	4	0	Yes
Master Pack	8313802EN3-12	6	10785652083058	16.25	6.25	9	0.529	4	0	Yes
NJ Pallet		96		48	40	77	85.556	417.6		No
NV Pallet		96		48	40	77	85.556	417		No
