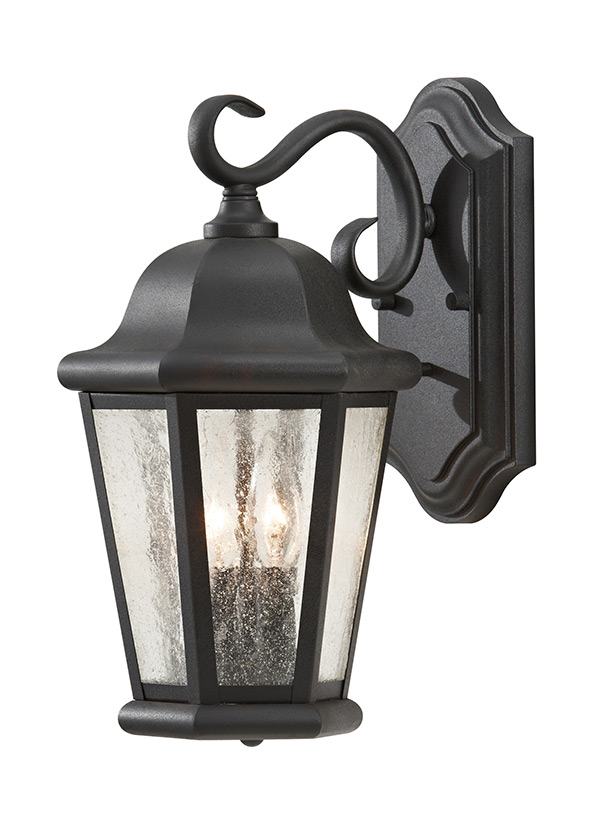

OL5901EN/BK: Medium Two Light Outdoor Wall Lantern


Collection:  Martinsville

Featured in the decorative Martinsville collection

The Sea Gull Collection Martinsville two light outdoor wall fixture in black takes design cues from the Victorian Era. This outdoor series has a die-cast aluminum, hexagonal frame with clear seeded glass panels that beautifully reflect the light. These durable and timeless fixtures are available in either a Corinthian Bronze or Black finish.

2 Torpedo Candelabra 3.5 watt light bulbs

Fixture is supplied with 1 light bulb

clear seeded glass shades

Wet Rated

UPC #:785652084485

Finish:   Black (BK)
Dimensions:

Width: 8''
Height: 14 1/2''
Weight: 3.2 lbs.
Extends: 9 1/2''
Wire: 8'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  2 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Stainless Steel - Black
1 Canopy - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (OL5901)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 6     3 1/4 6 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10  5  1 1/8    5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual OL5901EN/BK 1  785652084485  11.75 10.75 17.5 1.279 6.55 0 Yes
Master Pack OL5901EN/BK 2  10785652084482  22 12.5 19 3.024 13 0 Yes
NJ Pallet   44    48 40 75 83.333 332 No
NV Pallet   44    48 40 75 83.333 332 No
