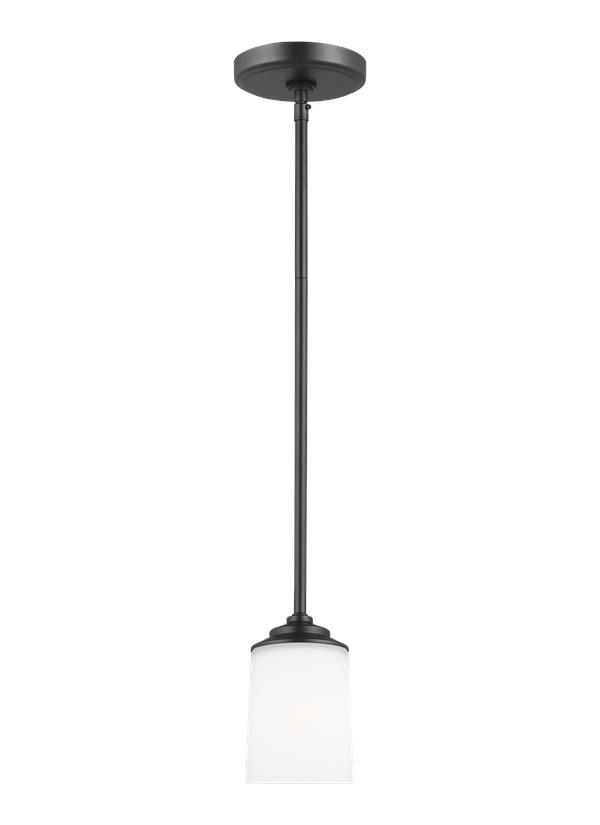

6130701EN3-112: One Light Mini-Pendant

	Collection: Kemal
	Traditional iron forms and casual styling available in three finishes
	Satin-Etched shades perched along a sleek, circular fixture in three finishes.
	Available in three finishes: Brushed Nickel, Burnt Sienna and Midnight Black
	Assortment offers three-, five- or nine-light chandeliers, one-light mini-pendant and one, two, three and four-light vanity fixtures.
	ENERGY STAR® Qualified
	UPC #:785652080104
	Finish: Midnight Black (112)

Dimensions:


Diameter:	4''
Height:	6 1/2''

Weight:

2.49 lbs.

Overall Height:

53''

Wire:

120'' (color/Black)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Sloped ceiling mounting hardware included
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Midnight Black

1 6" Stem - Steel - Midnight Black

3 12" Stem - Steel - Midnight Black

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990P6130701-KEM)
Trilingual (English, Spanish, and French) (6130701)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

G560353-303

5 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6130701-112	1	785652080104	14.25	6.75	7.5	0.417	3.4	0	Yes
Master Pack	6130701EN3-112	6	10785652080101	20.5	15	16.75	2.981	22.4	0	Yes
NJ Pallet		144		48	40	72.5	80.556	537		No
NV Pallet		144		48	40	75	83.333	489		No

	Job Name:	Job Type:
	Comments:	Quantity:
