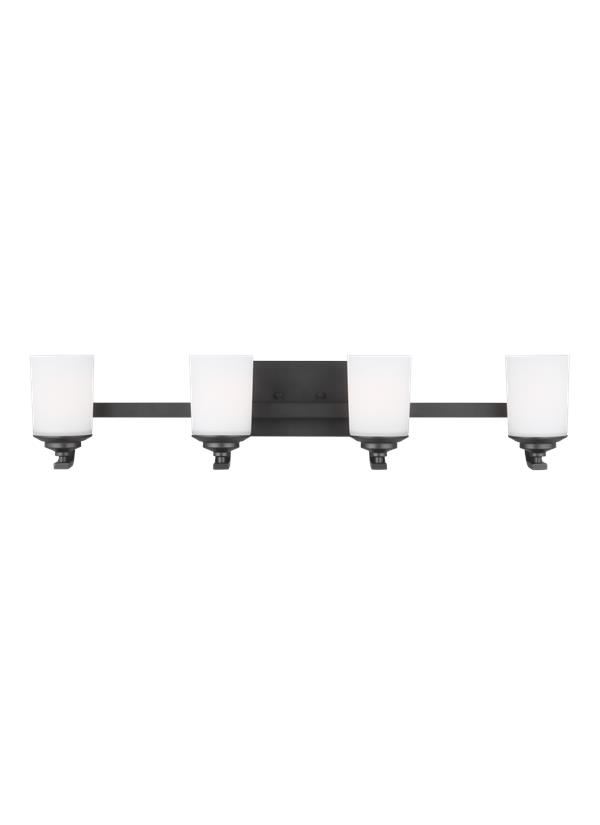

4430704EN3-112: Four Light Wall / Bath


Collection:  Kemal

Traditional iron forms and casual styling available in three finishes

Satin-Etched shades perched along a sleek, circular fixture in three finishes.

Available in three finishes: Brushed Nickel, Burnt Sienna and Midnight Black

Assortment offers three-, five- or nine-light chandeliers, one-light mini-pendant and one, two, three and four-light vanity fixtures.

ENERGY STAR® Qualified

UPC #:785652080074

Finish:   Midnight Black (112)
Dimensions:

Width: 34''
Height: 7 1/8''
Weight: 8.38 lbs.
Extends: 7 3/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  4 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4430702 4430703 4430704)
Trilingual (English, Spanish, and French) (4430702 4430703 4430704)
Trilingual (English, Spanish, and French) (990W443070_-KEM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 4 G560353-303     5 1/2 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7  13/16    2 9/16  4 9/16
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4430704-112 1  785652080074  41.25 9 9 1.934 10.3 0 Yes
Master Pack 4430704EN3-112 0  10785652080071
NJ Pallet   40    48 40 67.5 75 144.2 No
