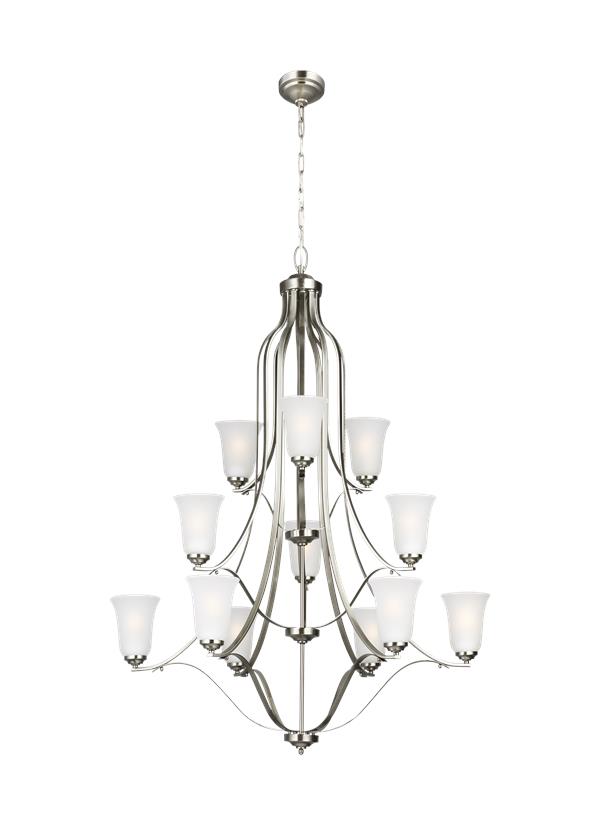

3139012EN3-962: Twelve Light Chandelier

	Collection: Emmons
	Traditional iron forms and casual styling available in three finishes
	12 A19 Medium 9.3 watt light bulbs included
	Satin etched glass shades
	Meets Title 24 energy efficiency standards
	ENERGY STAR® Qualified
	UPC #:785652081231
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	44 1/2''
Height:	44''

Weight:

30.2 lbs.

Overall Height:

167 1/2''

Wire:

144'' (color/Clear Silver)

Chain:

120''

Mounting Proc.:

Screw Collar - Chain

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

12 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Brushed Nickel

1 Chain - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (3139003 3139005 3139009 3139012)
Trilingual (English, Spanish, and French) (3139003 3139005 3139009 3139012)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560267-619

5 1/8

5 7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/4			5 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3139012-782	1	785652081231	45.25	44.25	16.25	18.83	45	0	No
Master Pack	3139012EN3-962	0	10785652081238
NJ Pallet		4		48	40	67.5	75	180		No
NV Pallet		4		48	40	67.5	75	180		No
