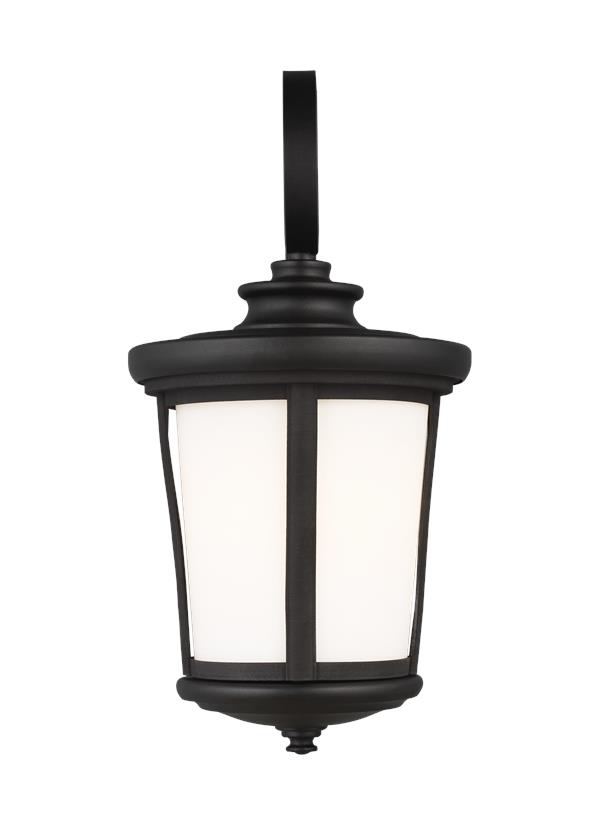

8619301EN3-12: Medium One Light Outdoor Wall Lantern


Collection:  Eddington

Eddington has a vintage classic look with the advantages of modern technology.

Cast aluminum, energy efficient fixtures with a powder coat finish for durability.

Two finish options available: Antique Bronze and Black

Assortment includes: small, medium, large and extra large one-light lanterns; one-light upright lantern; one-light post lantern and a one-light pendant

ENERGY STAR® Qualified

UPC #:785652080753

Finish:   Black (12)
Dimensions:

Width: 8''
Height: 16 1/8''
Weight: 2.97 lbs.
Extends: 10 3/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8519301 8619301 8719301)
Trilingual (English, Spanish, and French) (990W8_19301-EDD)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Cased Opal Etched 1       7 1/8 6 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  5  1    9 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8619301-12 1  785652080753  18 10.75 12.25 1.372 5.1 0 Yes
Master Pack 8619301EN3-12 0  10785652080750
NJ Pallet   48    48 40 69 76.667 244.8 No
NV Pallet   48    48 40 69 76.667 244.8 No
