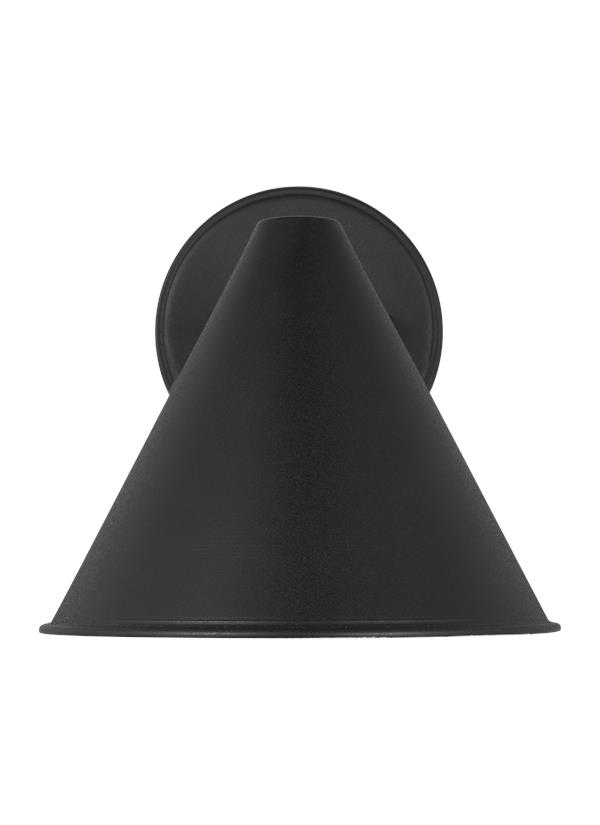

8438501EN3-12: Small One Light Outdoor Wall Lantern


Collection:  Crittenden

Featured in the decorative Crittenden collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

ENERGY STAR® Qualified

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

UPC #:785652083204

Finish:   Black (12)
Dimensions:

Width: 8''
Height: 7 5/8''
Weight: 1.32 lbs.
Extends: 9 1/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8538501-CRI)
Trilingual (English, Spanish, and French) (8438501 8538501 8638501)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     7/8  5  2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8438501-12 1  785652083204  11.5 10.75 10.25 0.733 2.2 0 Yes
Master Pack 8438501EN3-12 0  10785652083201
NJ Pallet   96    48 40 69 76.667 211.2 No
NV Pallet   96    48 40 69 76.667 211.2 No
