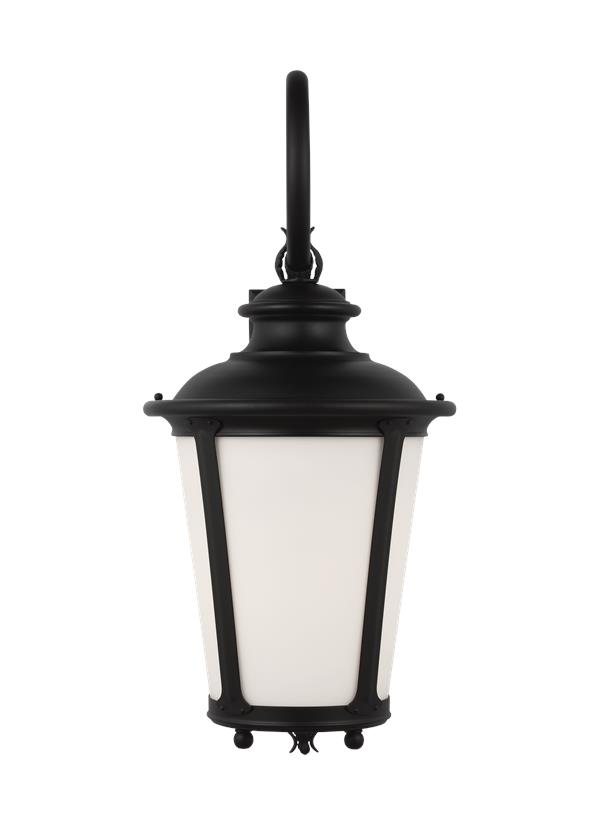

88243EN3-12: Extra Large One Light Outdoor Wall Lantern

	Collection: Cape May
	Large One Light LED Outdoor Wall Lantern in Black Finish with Etched / White Inside Glass Shade
	Featured in the decorative Cape May collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	etched / white inside glass diffuser
	ENERGY STAR® Qualified
	UPC #:785652083174
	Finish: Black (12)

Dimensions:


Width:	13''
Height:	29 3/4''

Weight:

11.9 lbs.

Extends:

16''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (HC-1181)
French (F-006)
Trilingual (English, Spanish, and French) (88243 89343)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

12 1/2

10 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	18 1/8	4 1/2	1		11 1/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	88243EN3-12	1	785652083174	31	15	18.75	5.046	15.2	0	Yes
Master Pack	88243EN3-12	0	10785652083171
NJ Pallet		12		48	40	70	77.778	182.4		No
NV Pallet		12		48	40	70	77.778	182.4		No
