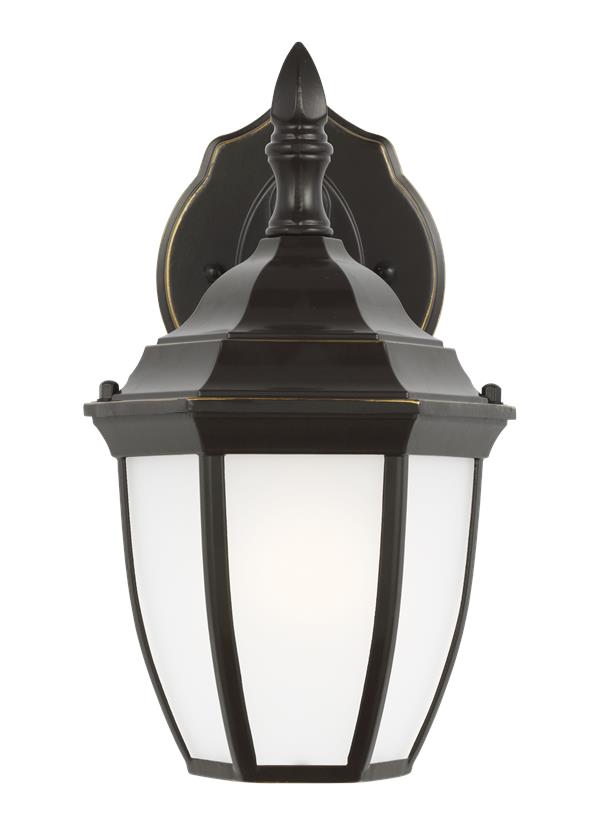

89936EN3-782: Small One Light Outdoor Wall Lantern



Collection:  Bakersville


One Light Outdoor Wall Lantern in Heirloom Bronze Finish with Satin Etched Glass

Featured in the decorative Bakersville collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

satin etched glass panels

ENERGY STARĀ® Qualified

UPC #:785652082818

Finish:   Heirloom Bronze (782)

Dimensions:

Width: 6 1/2''
Height: 11''
Weight: 1.76 lbs.
Extends: 7 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Heirloom Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_93_-BAK)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Satin Etched 6     2 1/2 4 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6 3/8  4 3/4  7/8    3 5/16
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88936-12 785652082818  9.5 8.25 12.5 0.567 2.3 175 Yes
NJ Pallet   120    48 40 72 80 276 No
NV Pallet   120    48 40 72 80 276 No
