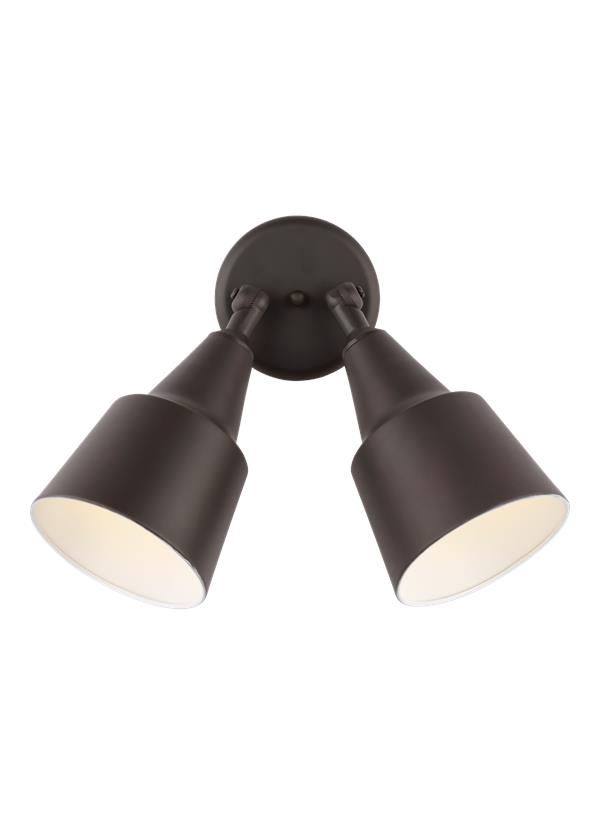

8560702-71: Two Light Adjustable Swivel Flood Light



Collection:  Flood Light


Double adjustable swivel flood light in antique bronze aluminum for outdoor use.

Featured in the decorative Flood Light collection

2 PAR30 Medium 75 watt light bulb

antique bronze aluminum shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652078941

Finish:   Antique Bronze (71)

Dimensions:

Width: 22 1/2''
Height: 12 1/2''
Weight: 2.1 lbs.
Extends: 11 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  2 - Medium PAR30 75w Max. 120v - Not included
Features:
  • Fixture may be mounted on wall or ceiling.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Canopy - Aluminum - Antique Bronze
2 Swivel Support - Aluminum - Antique Bronze
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-412)
English (8560701 8560701PM 8560702 8560702PM)
French (F-008)
Trilingual (English, Spanish, and French) (8560702)
Trilingual (English, Spanish, and French) (8560701 8560701PM 8560702 8560702PM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Aluminum Antique Bronze 2       7 1/2 5 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/4  5 1/4  2 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8560702-12 785652078941  7.25 14 13.25 0.778 3.75 0 Yes
Master Pack 8560702-71 10785652078948  23 14.75 14 2.749 11.5 0 Yes
NJ Pallet   75    48 40 76 84.444 287.5 No
NV Pallet   75    48 40 76 84.444 287.5 No
