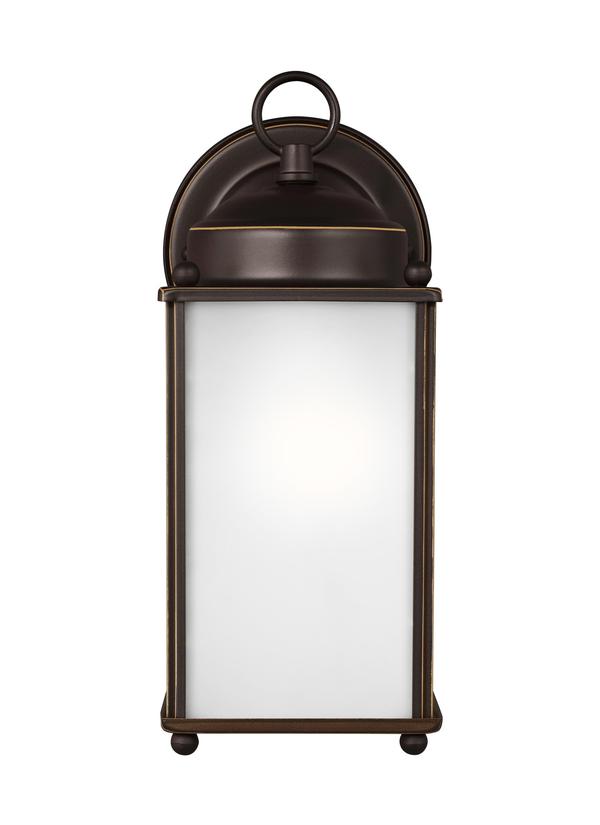

8593001-71: Large One Light Outdoor Wall Lantern


Collection:  New Castle

Simple Details Create Stylish Outdoor Wall Lantern. Antique Bronze Finish and Satin Etched Glass.

Featured in the decorative New Castle collection

1 A19 Medium 75 watt light bulb

satin etched glass panels

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652078781

Finish:   Antique Bronze (71)
Dimensions:

Width: 4 1/2''
Height: 10 1/4''
Weight: 1.61 lbs.
Extends: 5 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Antique Bronze
1 Canopy - Brass - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8592 8592001 8593 8593001)
Trilingual (English, Spanish, and French) (8614 8592001 8593 8593001)
Trilingual (English, Spanish, and French) (8592 8592001 8593 8593001)
Trilingual (English, Spanish, and French) (990W8593_-NCS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Satin Etched 4 G500053-619   3 3/8 6 11/32
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     2 1/16  4 1/2  2 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8593-12 1  785652078781  13 7.05 6.25 0.331 2 0 Yes
Master Pack 8593001-71 6  10785652078788  19.5 15.5 13.5 2.361 13.6 0 Yes
NJ Pallet   180    48 40 74 82.222 408 No
NV Pallet   180    48 40 74 82.222 408 No
