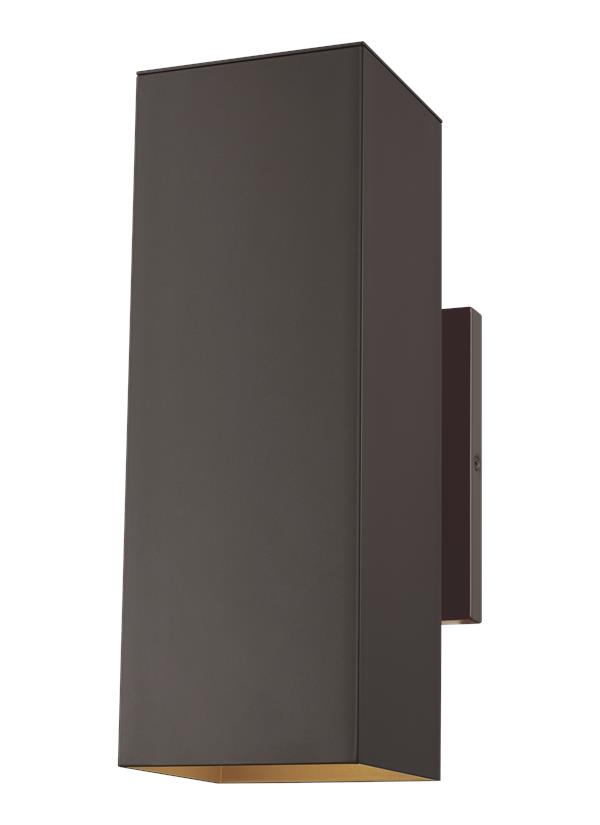

8631702-10: Medium Two Light Wall Lantern

	Collection: Pohl
	Assortment includes: 7"small -, 9"medium one light wall lantern, 14"two-light medium and 18 1/2" large wall lantern
	Three finish options available: Black, Bronze and Painted Brushed Nickel
	Easily converts to LED with optional replacement lamps
	Wet Rated
	UPC #:785652077289
	Finish: Bronze (10)

Dimensions:


Width:	5''
Height:	14 1/4''

Weight:

4.73 lbs.

Extends:

7 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Screw(s)

Connection:

Mounted To Box

Bulbs:

2 - LED Medium BR30 10w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Powder coat added to the finish to protect against aging.
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Bronze

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (8531701 8631702 8731701 8831702)
Trilingual (English, Spanish, and French) (990W8_3170_-POH)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Tempered Glass

4 7/16

1/8

Panel

Aluminum

Bronze

7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7	5	2 3/4		7 1/8

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8531701-12	1	785652077289	16.5	10.5	8.25	0.827	6	0	Yes
Master Pack	8631702-10	4	10785652077286	21.5	17.5	17	3.702	26	0	Yes
NJ Pallet		64		48	40	72.5	80.556	416		No
NV Pallet		64		48	40	72.5	80.556	416		No
