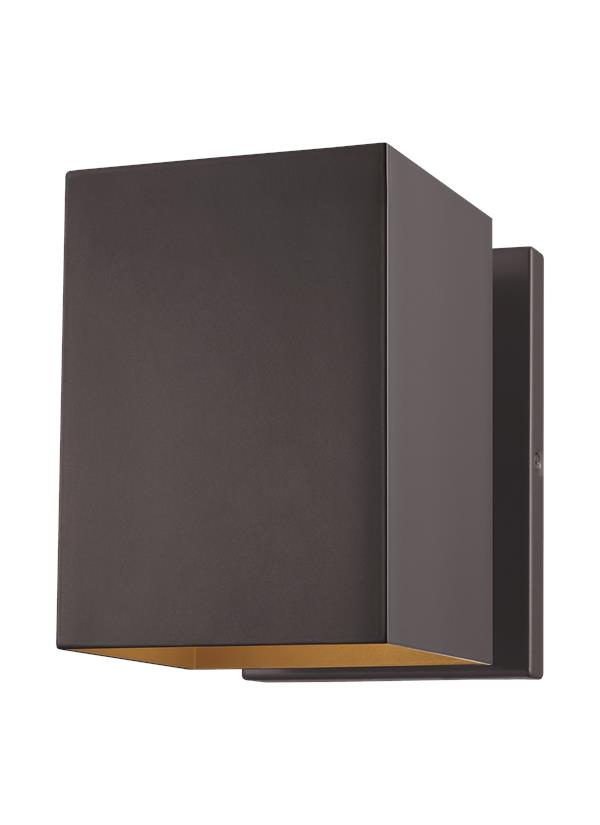

8531701-10: Small One Light Wall Lantern


Collection:  Pohl

Dark Sky and Wildlife compliant

Assortment includes: 7"small -, 9"medium one light wall lantern, 14"two-light medium and 18 1/2" large wall lantern

Three finish options available: Black, Bronze and Painted Brushed Nickel

Easily converts to LED with optional replacement lamps

Wet Rated

UPC #:785652077241

Finish:   Bronze (10)
Dimensions:

Width: 5''
Height: 7''
Weight: 2.46 lbs.
Extends: 7 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium BR30 65w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8531701 8631702 8731701 8831702)
Trilingual (English, Spanish, and French) (990W8_3170_-POH)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7  5  2 3/4    3 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8531701-12 1  785652077241  10.5 9.75 7.75 0.459 3.3 0 Yes
Master Pack 8531701-10 6  10785652077248  20 11.25 25 3.255 21.5 0 Yes
NJ Pallet   144    48 40 71 78.889 516 No
NV Pallet   144    48 40 71 78.889 516 No
