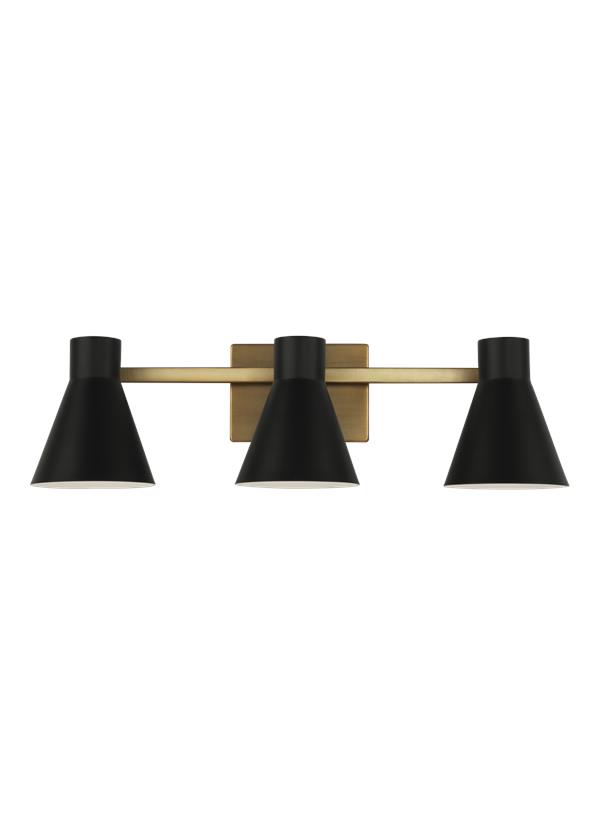

4441303-848: Three Light Wall / Bath


Collection:  Towner

Traditional iron forms and casual styling available in three finishes

3 A19 Medium 60 watt light bulbs

Black steel shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652077715

Finish:   Satin Brass (848)
Dimensions:

Width: 25 5/8''
Height: 7 1/4''
Weight: 3.4 lbs.
Extends: 7 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4141301 4441302 4441303 4441304)
Trilingual (English, Spanish, and French) (4141301 4441302 4441303 4441304)
Trilingual (English, Spanish, and French) (990W4_4130_-TOW)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Black 3       6 7/8 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7  3/4    4 3/4  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4441303-848 1  785652077715  28.75 9.25 9.5 1.462 5 0 Yes
Master Pack 4441303-848 0  10785652077712
NJ Pallet   42    48 40 72.5 80.556 210 No
NV Pallet   42    48 40 72.5 80.556 210 No
