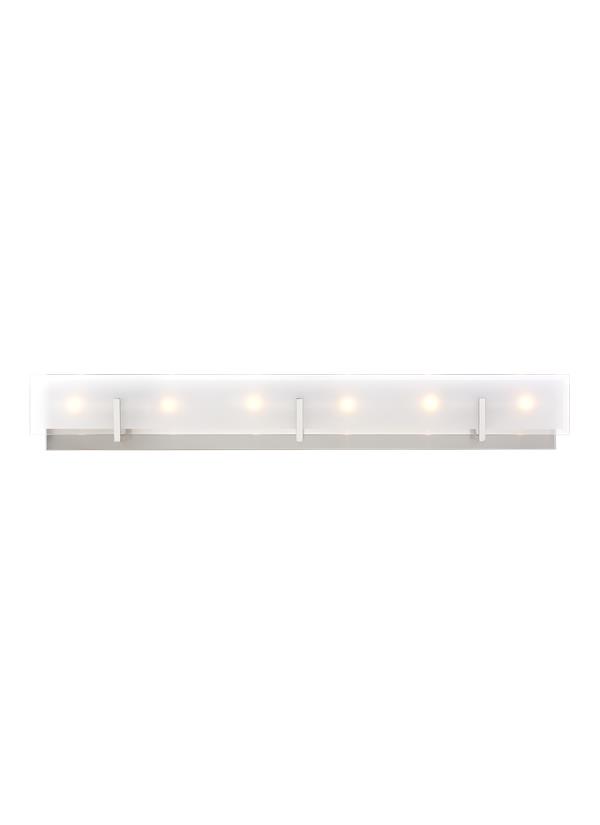

4430806-962: Six Light Wall / Bath


Collection:  Syll

Modern wall fixture with geometric frosted glass shades perfect for the bathroom.

Easily converts to LED with optional replacement lamps

Available in two finishes: Brushed Nickel and Chrome

Assortment includes: one-,two-, three- and four-light vanity fixtures.

Damp Rated

UPC #:785652077685

Finish:   Brushed Nickel (962)
Dimensions:

Width: 38''
Height: 5 1/2''
Weight: 7.26 lbs.
Extends: 3 7/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  6 - Candelabra Torpedo 40w Max. 120v - Not included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4130801 4430802 4430804 4430806)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Highlighted Satin Etched 1 G560377-675   38 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  37  3/4    3 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4430806-962 1  785652077685  42.5 7.25 7.25 1.293 9.3 0 Yes
Master Pack 4430806-962 0  10785652077682
NJ Pallet   60    48 40 77 85.556 558 No
NV Pallet   60    48 40 77 85.556 558 No
