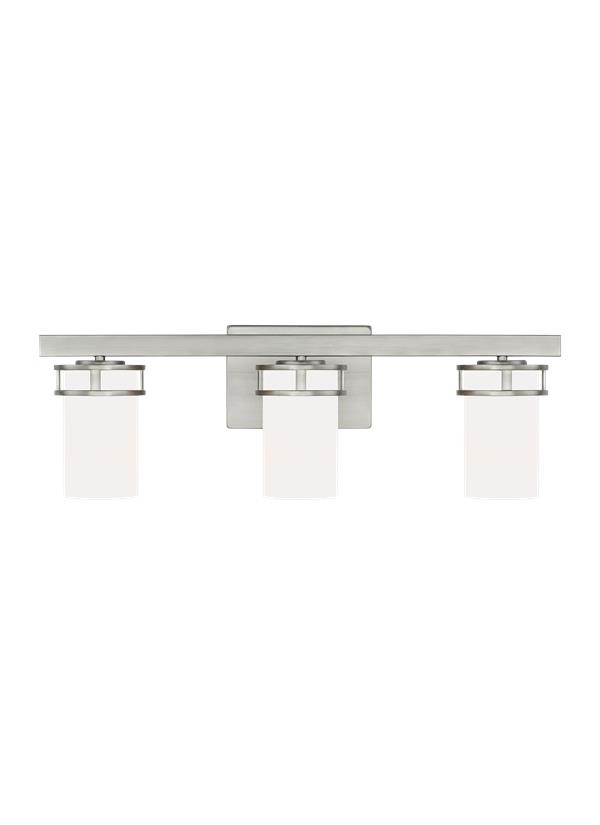

4421603-962: Three Light Wall / Bath



Collection:  Robie


Traditional iron forms and casual styling available in three finishes

Linear elements stream throughout the fixture to compose a relaxed but exotic ambiance

Available in three finishes: Brushed Nickel, Burnt Sienna and Midnight Black

Assortment offers three-, five-, nine- or twelve-light chandeliers, one-light mini-pendant and one-, two-, three- and four-light vanity fixture.

Fixture may be mounted in the up or down position

UPC #:785652075308

Finish:   Brushed Nickel (962)

Dimensions:

Width: 24''
Height: 8 1/8''
Weight: 5.28 lbs.
Extends: 6 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4121601 4421602 4421603 4421604)
Trilingual (English, Spanish, and French) (4121601 4421602 4421603 4421604)
Trilingual (English, Spanish, and French) (4421602 4421603 4421604)
Trilingual (English, Spanish, and French) (4121604 4421602 4421603 4421604)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 3 G560352-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 3/4    5 5/8  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4421603-962 785652075308  26.5 7.5 11.5 1.323 5.7 0 Yes
Master Pack 4421603-962 10785652075305
NJ Pallet   54    48 40 71.5 79.444 307.8 No
NV Pallet   54    48 40 71.5 79.444 307.8 No
