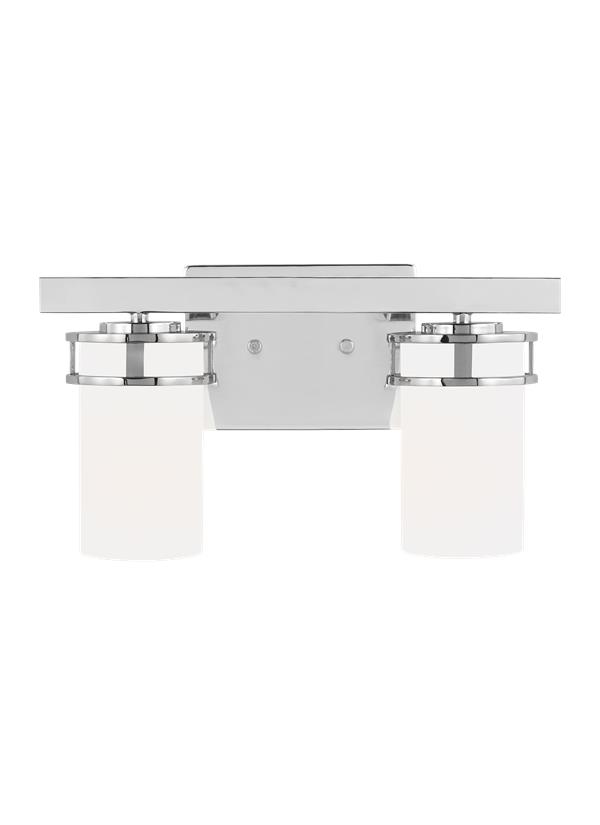

4421602-05: Two Light Wall / Bath


Collection:  Robie

Traditional iron forms and casual styling available in three finishes

Linear elements stream throughout the fixture to compose a relaxed but exotic ambiance

Available in three finishes: Brushed Nickel, Burnt Sienna and Midnight Black

Assortment offers three-, five-, nine- or twelve-light chandeliers, one-light mini-pendant and one-, two-, three- and four-light vanity fixture.

Fixture may be mounted in the up or down position

UPC #:785652075230

Finish:   Chrome (05)
Dimensions:

Width: 14 5/8''
Height: 8 1/8''
Weight: 2.64 lbs.
Extends: 6 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4421602 4421603 4421604)
Trilingual (English, Spanish, and French) (4121604 4421602 4421603 4421604)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 2 G560352-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7  3/4    5 5/8  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4421602-05 1  785652075230  16.75 7.5 11.5 0.836 4.1 0 Yes
Master Pack 4421602-05 0  10785652075237
NJ Pallet   72    48 40 70.5 78.333 295.2 No
NV Pallet   72    48 40 70.5 78.333 295.2 No
