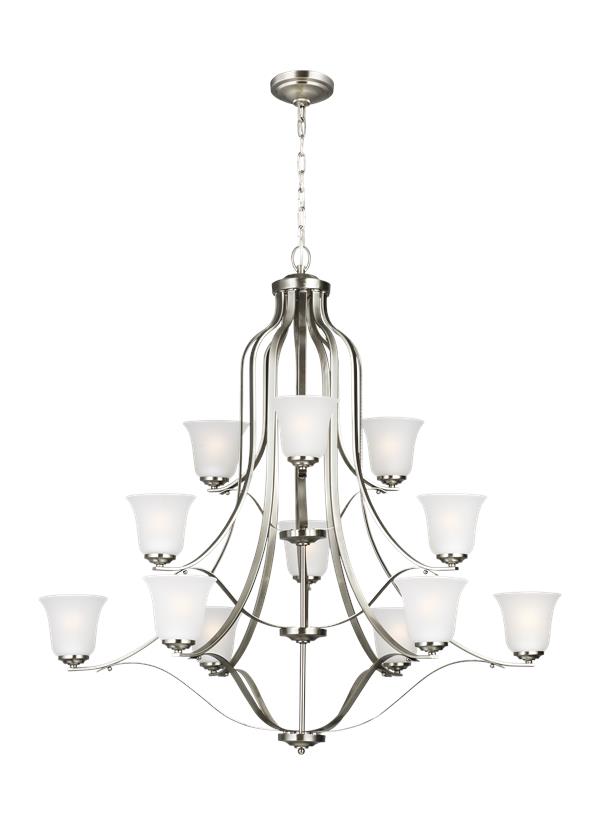

3139012-962: Twelve Light Chandelier


Collection:  Emmons

Traditional iron forms and casual styling available in three finishes

Satin-Etched glass shades create a clean, transitional design

Teardrop curves in the arms tipped by etched glass diffusors shows the Emmons Collection's commitment to style while its keeping price sharp

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652077760

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 44 1/2''
Height: 44''
Weight: 30.2 lbs.
Overall Height: 167 1/2''
Wire: 144'' (color/Clear Silver)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  12 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (3139003 3139005 3139009 3139012)
Trilingual (English, Spanish, and French) (3139003 3139005 3139009 3139012)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 12 G560267-619     5 1/8 5 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3139012-962 1  785652077760  45.25 44.25 16.25 18.83 45 0 No
Master Pack 3139012-962 0  10785652077767
NJ Pallet   4    48 40 67.5 75 180 No
NV Pallet   4    48 40 67.5 75 180 No
