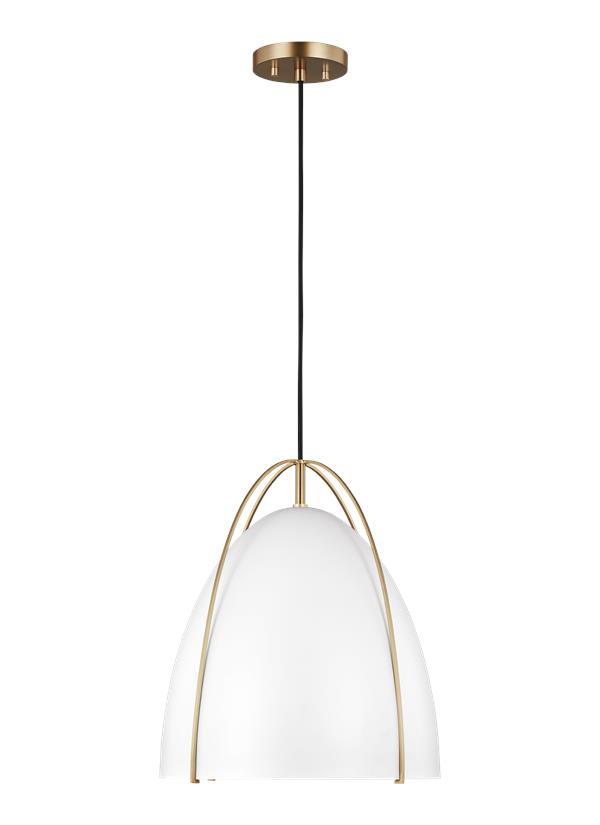

6551801-848: One Light Pendant



Collection:  Norman


Interior of shade is Matte White

Traditional iron forms and casual styling available in three finishes

1 A19 Medium 75 watt light bulb

Finish options include: Midnight Black with Chrome or Satin Brass hardware and Matte White with Chrome or Satin Brass hardware

Assortment includes: one-light pendant in four finish options.

Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

UPC #:785652077470

Finish:   Satin Brass (848)

Dimensions:

Diameter: 13 3/8''
Width: 13 3/8''
Height: 15 1/4''
Weight: 4.84 lbs.
Overall Height: 81 1/4''
Wire: 72'' (color/Black)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
1 Shade - Steel - Matte White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6551701 6551801)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Matte White 1       13 13
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6551801-848 785652077470  15.75 15.5 18.75 2.649 7.9 0 Yes
Master Pack 6551801-848 10785652077477
NJ Pallet   24    48 40 75 83.333 189.6 No
NV Pallet   24    48 40 75 83.333 189.6 No
