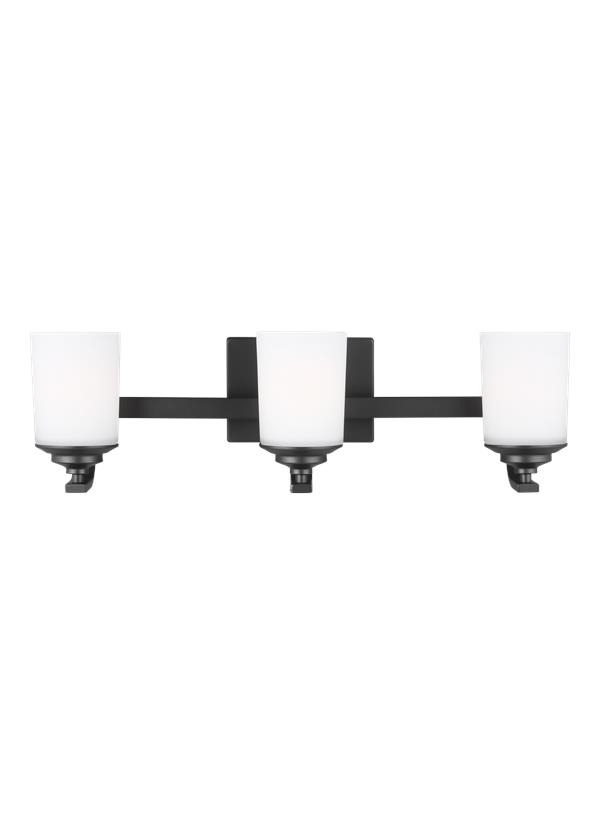

4430703-112: Three Light Wall / Bath


Collection:  Kemal

Traditional iron forms and casual styling available in three finishes

Satin-Etched shades perched along a sleek, circular fixture in three finishes.

Available in three finishes: Brushed Nickel, Burnt Sienna and Midnight Black

Assortment offers three-, five- or nine-light chandeliers, one-light mini-pendant and one, two, three and four-light vanity fixtures.

Fixture may be mounted in the up or down position

UPC #:785652075568

Finish:   Midnight Black (112)
Dimensions:

Width: 24''
Height: 7 1/8''
Weight: 6.34 lbs.
Extends: 7 3/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4430702 4430703 4430704)
Trilingual (English, Spanish, and French) (4430702 4430703 4430704)
Trilingual (English, Spanish, and French) (990W443070_-KEM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 3 G560353-303     5 1/2 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7  13/16    2 9/16  4 9/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4430703-112 1  785652075568  31.25 9 9 1.465 7.7 0 Yes
Master Pack 4430703-112 0  10785652075565
NJ Pallet   48    48 40 75 83.333 369 No
NV Pallet   48    48 40 75 83.333 369 No
