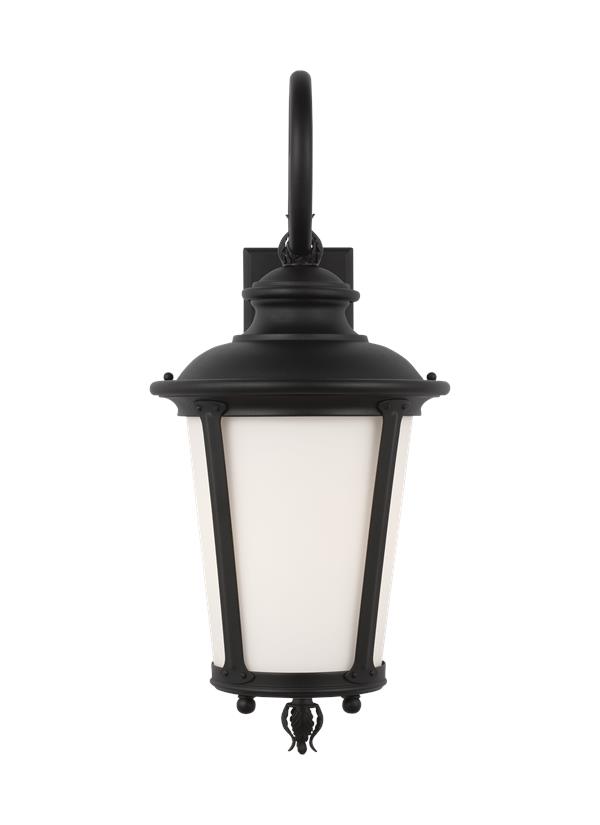

88242-12: Large One Light Outdoor Wall Lantern

	Collection: Cape May
	One Light Wall Lantern in Black Finish with Etched / White Inside Glass Shade
	Featured in the decorative Cape May collection
	1 A19 Medium 100 watt light bulb
	etched / white inside glass diffuser
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652079023
	Finish: Black (12)

Dimensions:


Width:	11''
Height:	26 1/4''

Weight:

7.5 lbs.

Extends:

13 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (HC-1180)
French (F-006)
Trilingual (English, Spanish, and French) (88242)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

10 15/32

8 5/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	18 1/8	4 1/2	1		9 1/4

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	88242-12	1	785652079023	27.25	13.25	16.25	3.395	11.1	0	Yes
Master Pack	88242-12	0	10785652079020
NJ Pallet		20		48	40	71.75	79.722	222		No
NV Pallet		20		48	40	71.75	79.722	222		No
