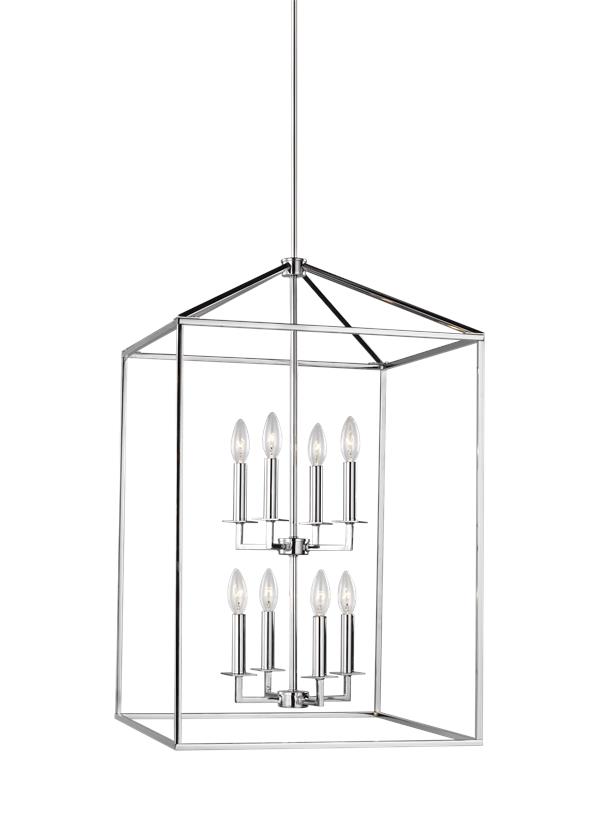

5115008-05: Large Eight Light Hall / Foyer


Collection:  Perryton

Traditional iron forms and casual styling available in four finishes

Perfect statement piece over a kitchen counter or dining table.

Includes two sets of candle covers in Chrome and Cream finishes.

Clear bulb(s) recommended for this fixture

Sloped ceiling mounting hardware included

UPC #:785652078347

Finish:   Chrome (05)
Dimensions:

Length: 19"
Width: 19''
Height: 30 3/4''
Weight: 12.3 lbs.
Overall Height: 77''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  8 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
1 6" Stem - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (5115004 5115008 5215004 5315008)
Trilingual (English, Spanish, and French) (5115004 5115008 5215004 5315008)
Trilingual (English, Spanish, and French) (990P5_1500_-PER)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5115008-05 1  785652078347  34.5 22 22 9.663 15.7 0 Yes
Master Pack 5115008-05 0  10785652078344
NJ Pallet   6    48 40 70.5 78.333 94.2 No
NV Pallet   6    48 40 70.5 78.333 94.2 No
