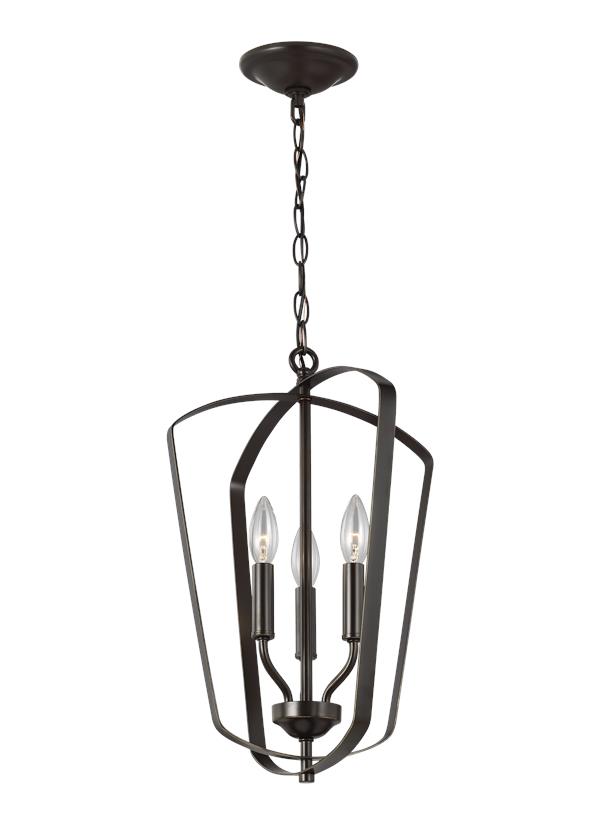

5134903-710: Small Three Light Hall / Foyer


Collection:  Romee

Traditional iron forms and casual styling available in three finishes

3 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Meets Title 24 energy efficiency standards

Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

UPC #:785652067754

Finish:   Bronze (710)
Dimensions:

Diameter: 12 7/8''
Height: 18 3/4''
Weight: 4 lbs.
Overall Height: 62 1/4''
Wire: 96'' (color/Brown)
Chain: 42''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Bronze
1 Chain - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH513490_-ROM)
Trilingual (English, Spanish, and French) (5134903 5134906)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134903-710 1  785652067754  19.25 15.25 5.75 0.977 5.6 0 Yes
Master Pack 5134903-710 0  10785652067751
NJ Pallet   72    48 40 75 83.333 403 No
NV Pallet   72    48 40 75 83.333 403 No
