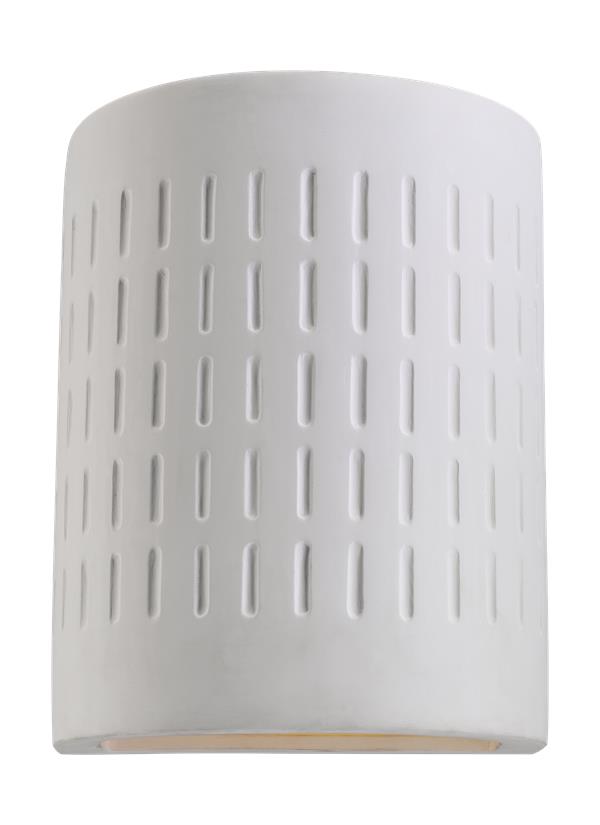

83046-714/T: One Light Outdoor Turtle Friendly Wall Lantern


Collection:  Paintable Ceramic Sconces

Outdoor Wall Bracket in Tough Ceramic Material. Accomodates One Light.

Acrylic or Latex paint suggested

Featured in the decorative Paintable Ceramic Sconces collection

1 PAR20 Medium 7 watt light bulb

Fixture is supplied with 1 light bulb

unfinished ceramic diffuser

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

UPC #:785652074554

Finish:   Unfinished Ceramic (714)
Dimensions:

Width: 8''
Height: 10''
Weight: 3.6 lbs.
Extends: 5 3/4''
Wire: 6 1/2''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 7
Lumens: 180
Bulbs:
  1 - Amber LED Medium PAR20 7w Max. 120v - included
Features:
  • When used with lamp provided, the Amber LED @590nM complies with marine turtle safe lighting requirements within coastal regions.
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Ceramic - Unfinished Ceramic
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-1338)
French (F-007)
Trilingual (English, Spanish, and French) (83046)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Ceramic Unfinished Ceramic 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10  8  7/8    4 1/4  5 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
S39188 Clear   Glass Lens   PAR20 Medium 6.5 6.5 120v 25000 150    40°
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 83046-714/T 1  785652074554  10 8 12 0.556 4.6 0 Yes
Master Pack 83046-714/T 0  10785652074551
