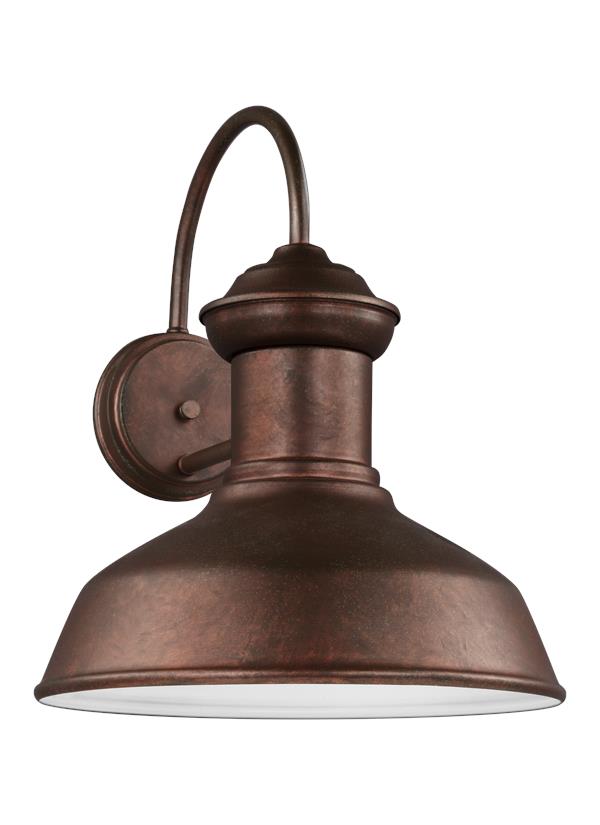

8647701-44/T: Large One Light Outdoor Turtle Friendly Wall Lantern


Collection:  Fredricksburg

Featured in the decorative Fredricksburg collection

1 PAR20 Medium 7 watt light bulb

Fixture is supplied with 1 light bulb

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Meets Title 24 energy efficiency standards

UPC #:785652074455

Finish:   Weathered Copper (44)
Dimensions:

Diameter: 13 1/4''
Width: 13 1/4''
Height: 15 7/8''
Weight: 3.9 lbs.
Extends: 15 1/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Single Cap Nut
Connection: Mounted To Box
Watts: 7
Lumens: 180
Bulbs:
  1 - Amber LED Medium PAR20 7w Max. 120v - included
Features:
  • When used with lamp provided, the Amber LED @590nM complies with marine turtle safe lighting requirements within coastal regions.
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Weathered Copper
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_47701-FRB)
Trilingual (English, Spanish, and French) (8547701 8647701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Aluminum Weathered Copper 1       5 1/2 13 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/8  4 3/4  7 1/2  8 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
S39188 Clear   Glass Lens   PAR20 Medium 6.5 6.5 120v 25000 150    40°
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8647701-44/T 1  785652074455  18.75 18.5 16.25 3.262 5.2 0 Yes
Master Pack 8647701-44/T 0  10785652074452
NJ Pallet   22    48 40 72 80 114 No
NV Pallet   22    48 40 72 80 114 No
