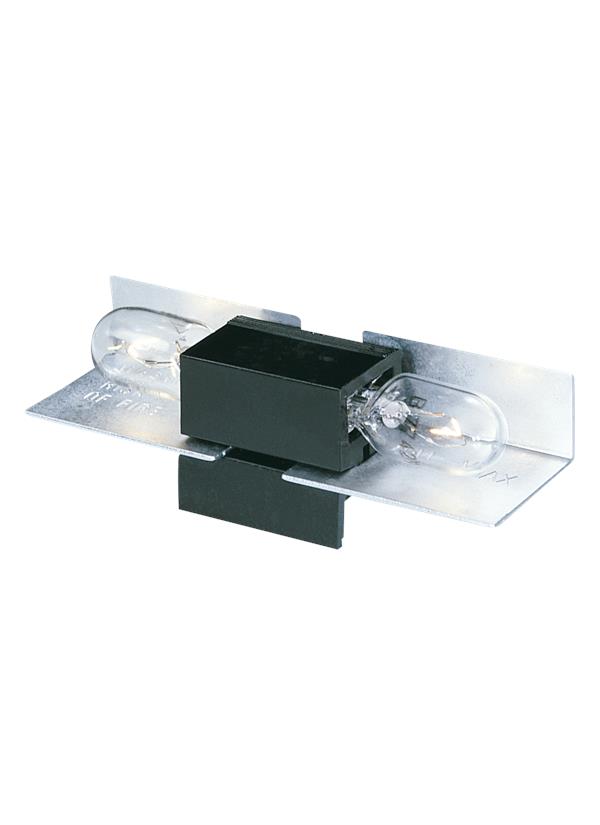

9428-12: Lx Wedge Base Lampholder-12


Collections: Lx Wedge Base Lampholders (Primary)
Lx Components


For use with our Xenon and incandescent wedge base lamps, the Lx Wedge Base Lampholders feature a high quality reflector for minimizing light loss from your selected lamps. Each lampholder snaps onto Lx Track and Cable with ease and minimum spacing of 4 inches on center. Recommended for use in hard to reach applications or in tight spaces. Replacement lamps: 9728, 9731, 9732.

UPC #:785652942822

Finish:   Black (12)
Dimensions:

Length: 2 1/2"
Width: 3/4''
Height: 3/4''
Weight: 0.01 lbs.
Bulbs:
  1 - Wedge T3 1/4 5w Max. 12v - Not included
1 - Xenon Wedge T3 1/4 3w Max. 12v - Not included
1 - Xenon Wedge T3 1/4 5w Max. 12v - Not included
Material List:
1 Body - Polycarbonate - Black
1 Reflector - Aluminum - Polished Aluminum
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-128)

Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
9728 Clear   Glass Lens   T3 1/4 Wedge 5 4 12v 9000 23   2300 90
9731 Clear   Glass Lens Xenon T3 1/4 Wedge 3 2.7 12v 19000 15   2400 90
9732 Clear   Glass Lens Xenon T3 1/4 Wedge 5 4.2 12v 8000 33   2550 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 9428-12 1  785652942822  3 2.5 1 0.004 0.01 0 Yes
Master Pack 9428-12 50  10785652942829  11 11 3 0.21 1.2 0 Yes
Shipping Master 9428-12 1000  20785652942826   30.05 13 13.5 3.052 25.45 100 Yes
NV Pallet   24000    48 40 68 75.556 611 No
