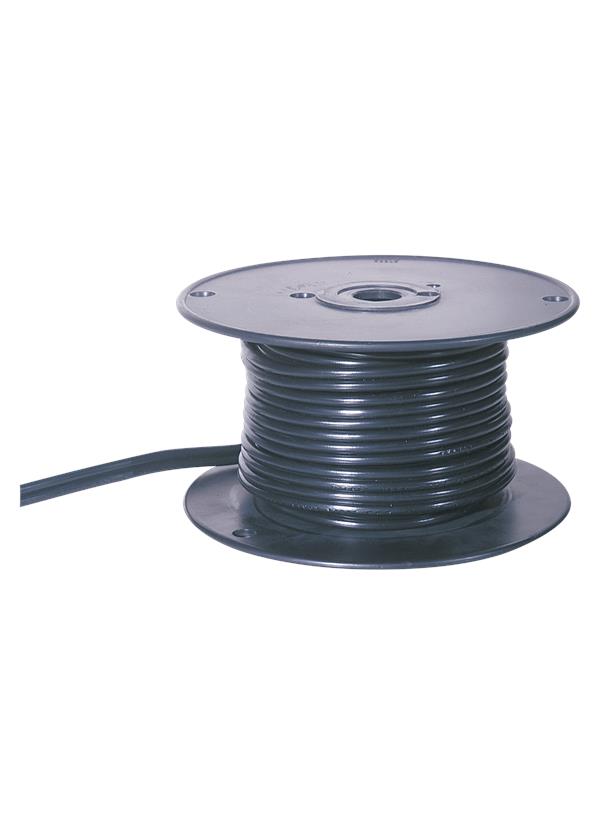

9471-12: 100 Feet Indoor Lx Cable-12


Collections: Lx Indoor Cable (Primary)
Lx Components


Specially designed, easy piercing, self-sealing insulation over stranded copper wire for use with the Lx Lighting System. Markings for socket placement every two inches. For use with Lx track, lampholders and transformers. UL and C-UL listed. 105°C 10/2 cable for indoor use only. Maximum wattage per length 300w at 12V; 600w at 24V. Cable is not rated to be run behind walls. Check local codes.

UPC #:785652947124

Finish:   Black (12)
Dimensions:

Length: 1200"
Width: 3/8''
Height: 3/16''
Weight: 8.4 lbs.
Wire: 1200'' (color/Black)
Material List:
1 Body - Wire - Black
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 9471-12 1  785652947124  6.5 6.5 4.25 0.104 8.3 0 Yes
Master Pack 9471-12 6  10785652947121  13.78 14 8.25 0.921 54 0 Yes
NV Pallet   144    48 40 55 61.111 1317.6 No
