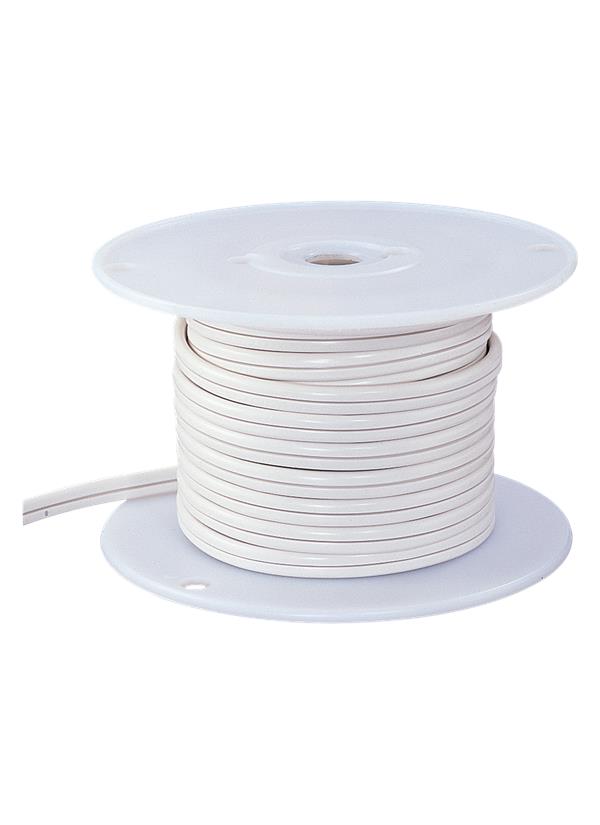

9469-15: 25 Feet Indoor Lx Cable-15



Collections: Lx Indoor Cable (Primary)
Lx Components


Specially designed, easy piercing, self-sealing insulation over stranded copper wire for use with the Lx Lighting System. Markings for socket placement every two inches. For use with Lx track, lampholders and transformers. UL and C-UL listed. 105°C 10/2 cable for indoor use only. Maximum wattage per length 300w at 12V; 600w at 24V. Cable is not rated to be run behind walls. Check local codes.

UPC #:785652946950

Finish:   White (15)

Dimensions:

Length: 300"
Width: 3/8''
Height: 3/16''
Weight: 2.3 lbs.
Wire: 300'' (color/White)
Material List:
1 Body - Wire - White
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 9469-15 785652946950  9 9 1.5 0.07 2.4 0 Yes
Master Pack 9469-15 10  10785652946957  13 10 11 0.828 25.1 0 Yes
NJ Pallet   360    48 40 47 52.222 903.6 No
NV Pallet   360    48 40 41 45.556 911 No
