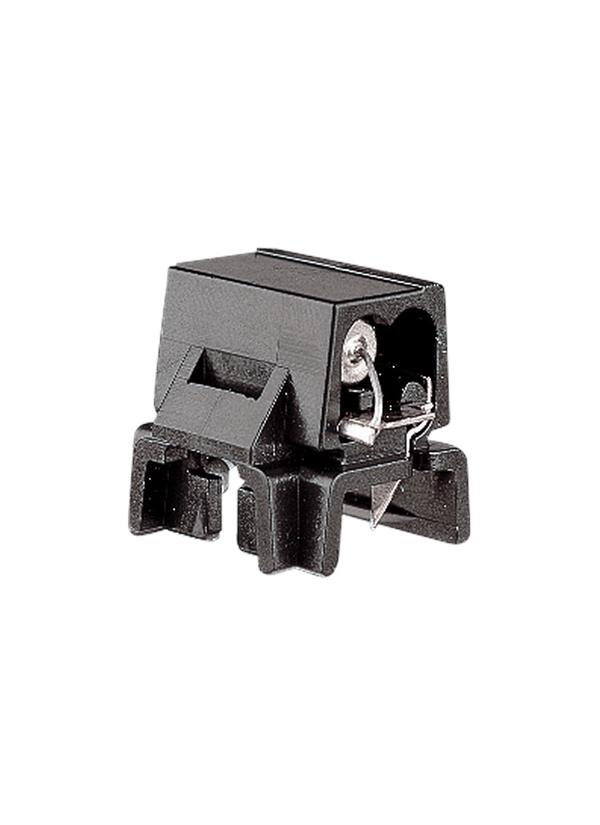

9488-12: Lx Fused Plug-12

	Collection: Lx Components
	Polycarbonate fused plug with corrosion resistant contacts. Snaps onto Lx cable and 9435 track or 9443 track/fascia for electrical connection to fixture. Insert 18/2 SPT-1 or equal size cord into plug and press in contacts. For use when installing fixtures with 18/2 AWG cord on Class I system. Maximum wattage after fuse, 60w at 12v or 100w at 24v. UL and C-UL listed.
	UPC #:785652948824
	Finish: Black (12)

Dimensions:


Length:	7/8"
Width:	3/4''
Height:	13/16''

Weight:

0.02 lbs.

Material List:

1 Body - Polycarbonate - Black

Safety Listing:

Safety Listed for Dry Locations
Safety Listed for Dry Locations

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	9488-12	1	785652948824	1	2.6	3	0.005	0.01	0	Yes
Master Pack	9488-12	5	10785652948821	1	5.5	2.7	0.009	0.02	0	Yes
Shipping Master	9488-12	500	20785652948828	13.75	14.25	13.75	1.559	1.5	250	Yes
NJ Pallet		24000		48	40	60	66.667	72		No
NV Pallet		24000		48	40	60	66.667	72		No
