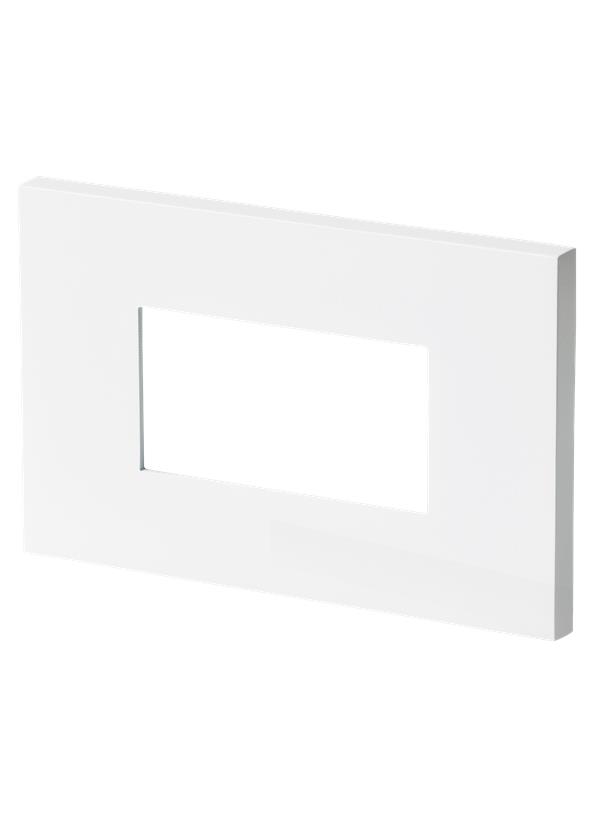

93485S-15: Vitra Amber LED Step Light-15

	Collection: LED Step Lighting
	Base Dimensions: 4 7/16" Long x 2 1/2" High x 1 1/4" Extension
	Face Plate Dimensions: 4 3/4" Long x 3" High x 1/4" Extension
	UPC #:785652115530
	Finish: White (15)

Dimensions:


Length:	4 3/4"
Height:	3''

Weight:

0.6 lbs.

Extends:

1 1/2''

Bulb Type:

Array

Bulb Base:

Integrated

Volts:

120

Watts:

3.3

Watts Consumed:

3.3

Watts Rated:

3.3

Hours Rated:

50000

Lumens:

CRI:

Features:

This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

Material List:

1 Body - Die Cast Aluminum - White

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (93405S 93485S 93483S 93481S 93401S 93403S)
Trilingual Lyte (English, Spanish, French) (950STEP)

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	93485S-15	1	785652115530	5.25	3.25	2.25	0.022	0.8	0	Yes
Master Pack	93485S-15	0	10785652115537
