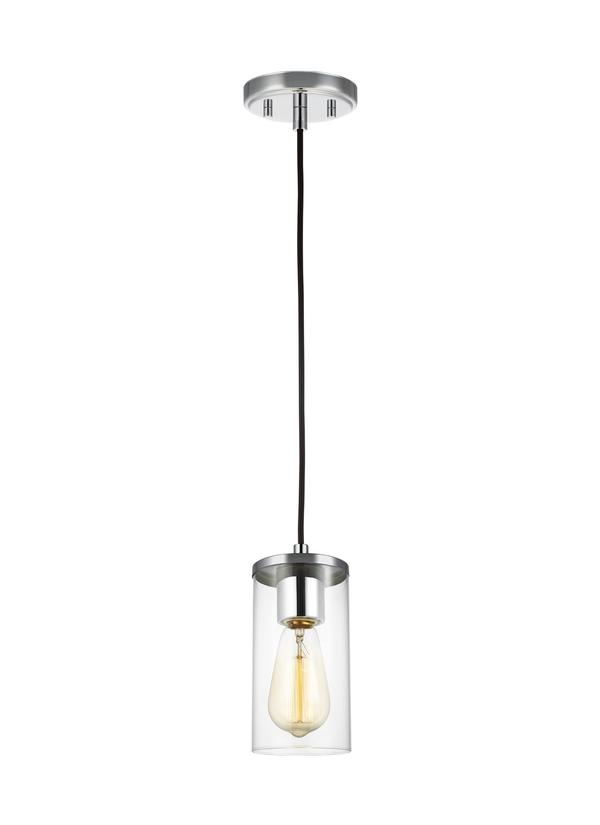

6190301EN7-05: One Light Mini-Pendant


Collection:  Zire

Featured in the decorative Zire collection

1 A19 Medium 8.5 watt light bulb

Fixture is supplied with 1 light bulb

Clear glass shade

ENERGY STAR® Qualified

UPC #:785652072215

Finish:   Chrome (05)
Dimensions:

Diameter: 4''
Height: 8 1/2''
Weight: 1.6 lbs.
Overall Height: 80 1/2''
Wire: 78'' (color/Black)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  1 - LED Medium A19 8w Max. 120v - included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6190301)
Trilingual (English, Spanish, and French) (990P6190301-ZIR)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear 1       7 1/2 3 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6190301EN7-05 1  785652072215  13.75 6.5 6.5 0.336 2.2 0 Yes
Master Pack 6190301EN7-05 6  10785652072212  20.18 14.75 13.5 2.325 15 0 Yes
NJ Pallet   180    48 40 70.5 78.333 450 No
NV Pallet   180    48 40 70.5 78.333 450 No
