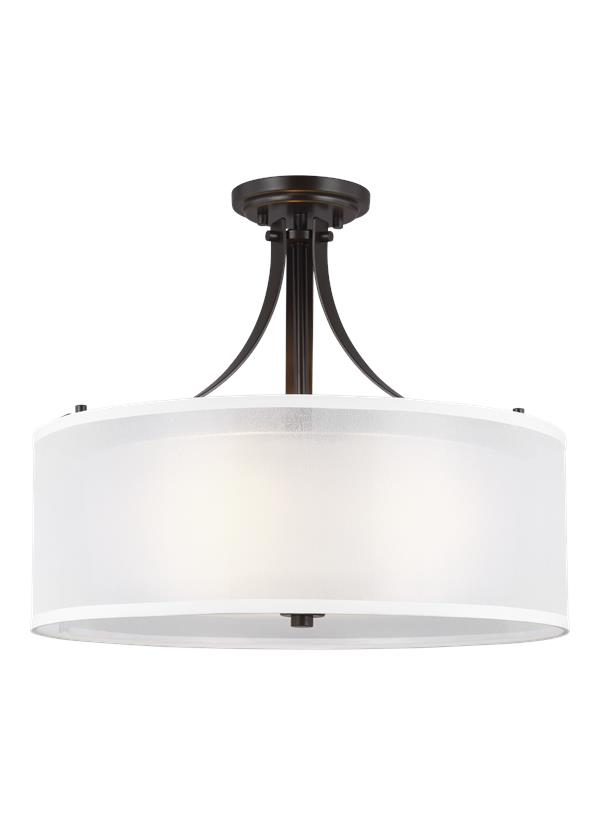

7737303-782: Three Light Semi-Flush Mount


Collection:  Elmwood Park

Featured in the decorative Elmwood Park collection

3 A19 Medium 75 watt light bulbs

Satin Etched glass shade and off white organza silk shade

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652070112

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 19''
Height: 15 3/4''
Weight: 9.7 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7737303-EWP)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       4 1/2 12
Shade Silk Off White Organza 1       5 5/8 15
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652070112  22.25 22.25 12 3.438 13.3 250 Yes
NJ Pallet   18    48 40 71.5 79.444 239.4 No
NV Pallet   18    48 40 71.5 79.444 239.4 No
