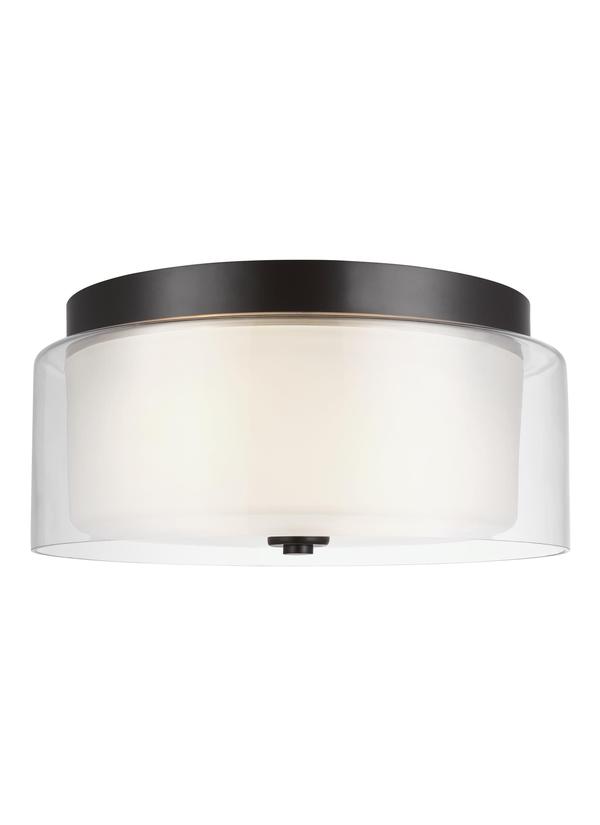

7537302EN3-782: Two Light Ceiling Flush Mount


Collection:  Elmwood Park

Featured in the decorative Elmwood Park collection

2 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass shade and Clear glass shade

ENERGY STAR® Qualified

UPC #:785652071775

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 14''
Height: 6 1/8''
Weight: 9.9 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7537302-EWP)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       4 1/2 12
Shade Glass Clear 1       5 3/8 14
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      12 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652071775  17.75 17 11 1.921 11.9 125 Yes
NJ Pallet   40    48 40 75 83.333 476 No
NV Pallet   40    48 40 75 83.333 476 No
