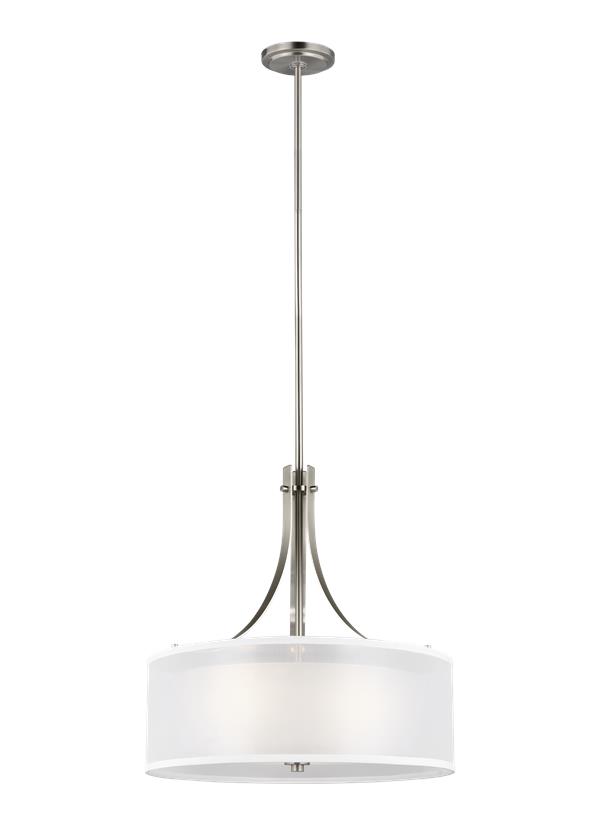

6537303EN3-962: Three Light Pendant

	Collection: Elmwood Park
	Featured in the decorative Elmwood Park collection
	3 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass shade and off white organza silk shade
	ENERGY STAR® Qualified
	UPC #:785652071744
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	19''
Height:	18''

Weight:

11.4 lbs.

Overall Height:

63 3/8''

Wire:

72'' (color/Clear Silver)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

3 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Sloped ceiling mounting hardware included
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Brushed Nickel

1 6" Stem - Steel - Brushed Nickel

3 12" Stem - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (6537303)
Trilingual (English, Spanish, and French) (6537303)
Trilingual (English, Spanish, and French) (990P6537303-EWP)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

5 1/8

15 3/4

Shade

Silk

Off White Organza

6 7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3113704-778	1	785652071744	22.25	22.25	13	3.724	14.8	0	Yes
Master Pack	6537303EN3-962	0	10785652071741
NJ Pallet		15		48	40	22	24.444	222		No
NV Pallet		15		48	40	75	83.333	222		No

	Job Name:	Job Type:
	Comments:	Quantity:
