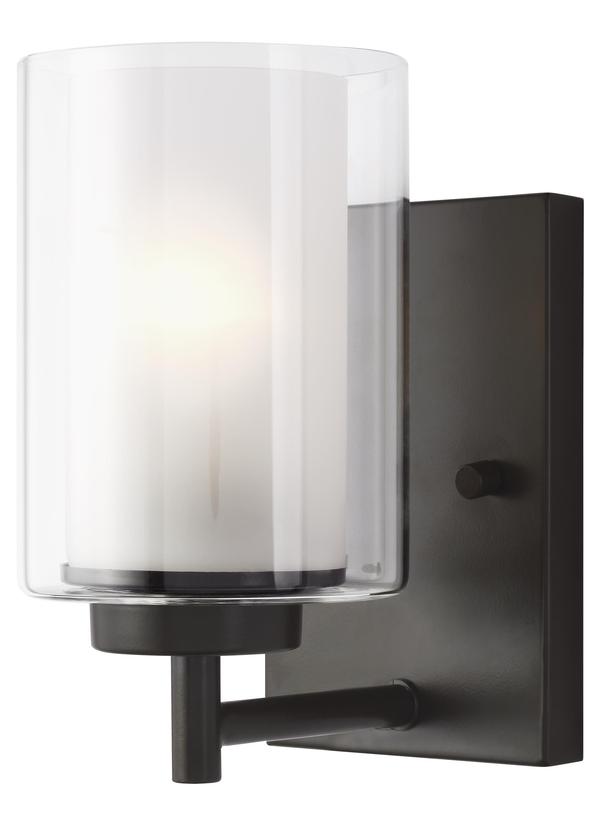

4137301-782: One Light Wall / Bath Sconce


Collection:  Elmwood Park

Featured in the decorative Elmwood Park collection

1 A19 Medium 75 watt light bulb

Satin Etched glass shade and Clear glass shade

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652069864

Finish:   Heirloom Bronze (782)
Dimensions:

Width: 4 1/2''
Height: 8''
Weight: 2 lbs.
Extends: 6 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4137301 4437302 4437303 4437304)
Trilingual (English, Spanish, and French) (990W4_3730_-EWP)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       5 1/2 3 1/8
Shade Glass Clear 1       5 7/8 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6  4 1/2  3/4    5  3
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652069864  17.75 12 15.75 1.941 2.5 65 Yes
Master Pack 4137301-782 4  10785652069861  11.25 7.5 8.5 0.415 11.3 65 Yes
NJ Pallet   128    48 40 72 80 361 No
NV Pallet   128    48 40 72 80 361 No
