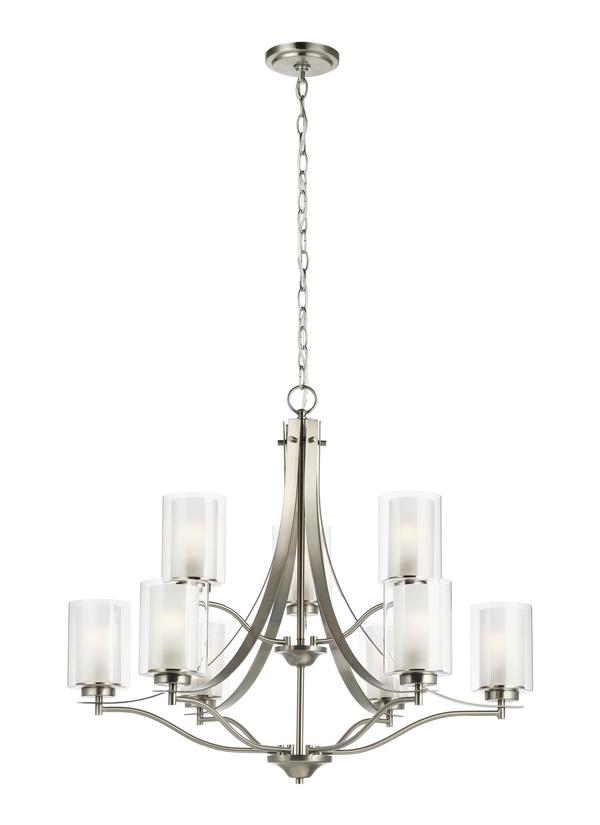

3137309-962: Nine Light Chandelier


Collection:  Elmwood Park

Featured in the decorative Elmwood Park collection

9 A19 Medium 75 watt light bulbs

Satin Etched glass shades and Clear glass shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652069857

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 32''
Height: 27 5/8''
Weight: 21.4 lbs.
Overall Height: 102''
Wire: 144'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  9 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (3137303 3137305 3137309)
Trilingual (English, Spanish, and French) (3137303 3137305 3137309)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 9       5 1/2 3 1/8
Shade Glass Clear 9       5 7/8 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652069857  29.25 33 13.5 7.541 28.3 0 Yes
Master Pack 3137309-962 0  10785652069854
NJ Pallet   9    48 40 77 85.556 254 No
NV Pallet   9    48 40 77 85.556 254 No
